Dado Lab SRL

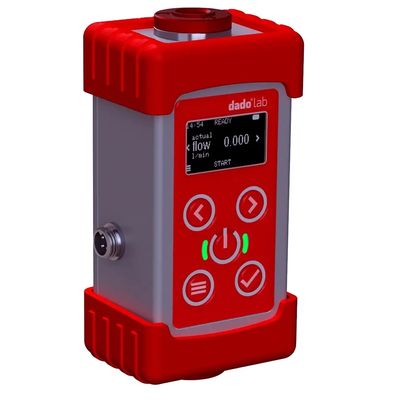

Dado - Model CF1 -Compact and Versatile Battery-Powered Digital Multiparameter Flowrate Calibrator
FromDado Lab SRL
Dado Lab CF1 is the compact and versatile battery-powered digital multiparameter calibrator, designed for the verification and calibration of personal, environmental, and emission samplers. It is ISO17025 certifiable and compliant with international standards. It simultaneously measures flow rate, volume, and ambient pressure, and with the optional external probe, it can also measure ambient temperature and relative humidity. The flow rate is based on a mass sensor with a laminar cell, providing a 1:100 dynamic range in a single device, with two possible measurement ranges: 0.45 ÷ 45 Nl/min in the standard version and 0.05 ÷ 5.0 Nl/min in the LF version. It displays both actual and normalized conditions for flow and volume.
Most popular related searches
occupational hygiene
emissions sampling
temperature sensor
ambient temperature monitoring
absolute pressure sensor
barometric pressure
flow monitoring
environmental sampling
temperature monitoring
pressure sensor
General
- Range: 0.45 ÷ 45.00 Nl/min
- 0.050 ÷ 5.000 Nl/min (LF version)
- Flowrate indication: Actual conditions, normal, dry normal (UR model)
- Standard accuracy: ±1.5 %F.S.
- High accuracy: ±0.8 %R.D. ±0.1 %F.S.
- Volume accuracy: ±1.5%
- Operative conditions: -10 ÷ 40°C
- Stock conditions: -10 ÷ 50°C 95% UR
- Display: 1.3″ OLED
- Communication: Wireless
- Display: 1.3″ OLED
- Internal memory: 8MB
- Battery: LiPo 4000mAh
- Power supply: 5V/1000mA USB Type-C
- Materials: ABS with rubber on borders
- Keyboard: Polycarbonate, tactile effect keys
- Weight: 500g
Sensors
- Absolute pressure:
- Barometric: 50 ÷ 115 kPa
- Hysteresis/Linearity: 0.25 % F.S.
- Accuracy: Better than 1% (± 0.25kPa)
- Resolution: 0.01 kPa
- Temperature:
- Range: -10 ÷ 60°C
- Resolution: 0.1°C
- Accuracy: 1% (± 0.4°C)
- Temperature RH sensor:
- Temperature range: -10 ÷ 60°C
- Resolution: 0.1°C
- Accuracy: 1% (± 0.4°C)
- Range UR%: 0 ÷ 100% UR
- Resolution: 0.5%
- Accuracy: ±2% between 10% ÷ 90% UR a 25°C
