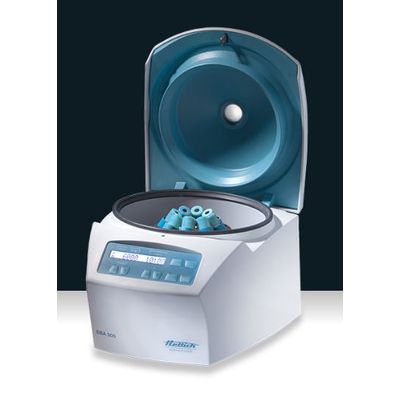

Hettich - Model EBA 200 | 200 S -Compact Centrifuges for Laboratory Use
The EBA 200 and EBA 200 S represent a series of compact centrifuges designed for laboratories with space constraints or low sample throughput needs. These units stand out for their ability to process small sample sizes efficiently, with the EBA 200 S model reaching required speeds in under three minutes thanks to its high speed capabilities. Both models include an 8-place fixed angle rotor capable of holding tubes up to 15 ml and 10 ml, supporting a variety of laboratory applications such as blood and urine analysis. These centrifuges are equipped with air cooling systems and offer maximum relative centrifugal force (RCF) values of 3,461 and 6,153, alongside rotational speeds of 6,000 min-1 and 8,000 min-1 respectively. The medical device version caters specifically to clinical settings, optimizing preanalytical processes such as creating Platelet Poor Plasma (PPP). Compact and weighing between 9 to 11 kg, these devices fit easily in laboratory spaces.
TOP PERFORMANCE FOR SMALL LABORATORIES
The EBA 200 and EBA 200 S are practical, compact centrifuges for small sample sizes. The high speed S model can deliver reliable results in 3 minutes or less. An 8-place fixed angle rotor is included to hold standard blood and urine tubes up to 15 ml in capacity.
The EBA 200 is also available as a medical device used for separating whole blood or blood components of human origin. This medical device centrifuge comes equipped as standard with an 8-place angled rotor to accommodate tubes with volumes of up to 10 ml.
MAX. CAPACITY:
8 x 15 ml (IVDR)
8 x 10 ml (MDR)
MAX. RCF:
3,461 | 6,153
MAX. RPM:
6,000 min-1 | 8,000 min-1
WEIGHT:
approx. 9 kg | 11 kg
REFRIGERATION:
Air cooling
DIMENSIONS (W x D x H):
261 x 353 x 228 mm
