ONUEE Electronics Ltd.

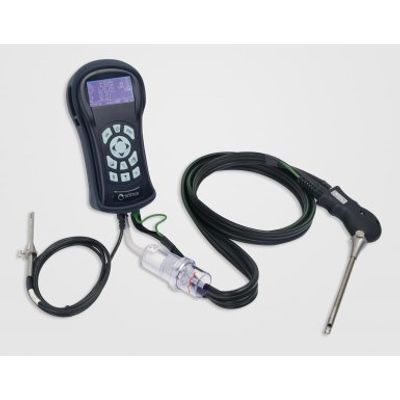

Compact Combustion Analyzer- Casper
CASPER is a portable flue gas analyser that was meticulously designed to meet statutory requirements and specific customer demands. It may be provided in a rugged ABS carry case or waterproof shoulder bag. The instrument contains one single board with all the basic circuitry, pre-calibrated measuring cells, sampling pump, silicone keypad, backlit graphic LCD display, high-capacity rechargeable Li-Ion battery pack. The two halves of the case are firmly secured by six screws on the rear of the instrument.
Most popular related searches
flue gas sensor
flue gas
gas sensor
portable gas analyzer
flue gas monitoring
tightness testing
ambient air
flue gas sampling probe
measure carbon monoxide
portable gas
2 measuring sensors for:
- O2
- CO
- NO (only for Casper 301)
Other measurement:
- Flue Gas Temperature
- Outdoor Air Temperature
- Room Temperature
- Absolute and differential pressure
- Draught high precision measurement - UNI 10845.
Calculated Measurement:
- CO2
- Boiler efficiency, condensing included
- Stack loss
- Excess air
- Differential Temperature
Additional features:
- Firmware updates available for free from Seitron website: www.seitron.it
- Gas pipes tightness test UNI 7129/11137 (Casper 202/301 only)
Main features:
- Compliant with EN 50379-1 and EN 50379-2
- 2 and 3 measurement cells O2, CO and NO
- CO measurement cell with 1 ppm resolution and built in NOX/SOX filter
- Precalibrated gas sensors, field replaceable
- Flue gas and outdoor air temperature measurement
- Absolute and differential pressure measurement
- Boiler efficiency calculation
- Automatic detection of condensing boiler with efficiency calculation
- CO2, heat stack loss, excess air calculation
- Ambient CO measurement
- High accuracy internal probe (± 0.5 Pa) and resolution (0.1 Pa) draft measurement with internal sensor
- Gas pipes tightness test UNI 7129/11137 (Casper 202/301 only)
- 3 consecutive analysis with average calculation
- Internal memory for 300 analysis
- Big blue (38 x 70 mm) graphic LCD backlit with zoom feature
- Rechargeable Lithium Ion batteries
- External Charger/Power Supply with AC plug
- Recharging time: 4 hrs. up to 90% (Sh x 100%)
- Up to 12 hrs. autonomy of continuous operation
- USB cable for unlimited data storage on PC
- Bluetooth class 1 (up to 100 mts)
- Self diagnostic function with alarms on gas sensors end-of-life
- 180, 300, 750 and 1000 mm flue gas sensor probes
- 300 mm flexible flue gas sensors sampling probe
- External condensation trap and dust filter
- Unbreakable stainless steel probe and hose connections
- 12 preprogrammed fuels, including pellets and wood
- 32 additional programmable fuels
- 10 different languages preprogrammed
- Neoprene magnetic holster
- PC software and video manual on USB pendrive
- User manual and calibration certificate
- Dimensions 220x110x55 mm, weight 0,55 Kg.
- Bluetooth connection to printer and PC
- IR connection to IR printer
Boiler plant
Environment monitoring
Power plant
Cement plant
