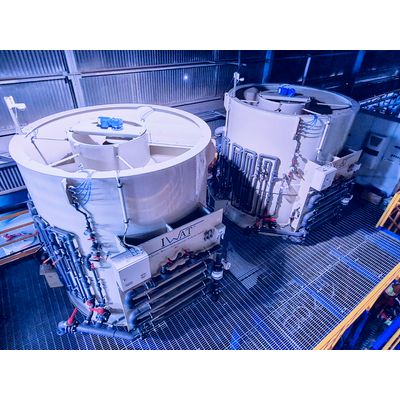

IWAT CCF - Compact Conus Flotation System

SHARE

CCF is at the center of multi-stage wastewater treatment — this allows you to save disposal costs and discharge or reuse your process water directly.

Most popular related searches
flotation system
compact flotation
plastic recycling
chemical oxygen demand
pH control system
floating sludge
DAF system
water jetting
industrial water
tank cleaning
  • The pressure relief flotation (DAF) purifies 2m³ to 35m³ industrial water per hour,
  • Is through the from IWAT patented two-stage flotation process In a tank especially space-saving and
  • reduces chemical oxygen demand Your water around up to 91%.

The patented two-stage flotation, which combines two complete DAF systems, allows for space savings of at least 50% compared to conventional plants.

  • 2m³ - 35m³ Purification possible
  • pH-Control Integrated neutralization
  • Siemens S7 IWAT Online-Support
  • compact 2in1 patented process
The IWAT Compact-Conus flotation system has been developed for reliable and space-saving use in the plastic recycling and food industries. It combines state-of-the-art flotation technology with an extremely compact design that occupies at least 50% less space than comparable systems due to its two-stage configuration. Thanks to its lightweight construction using PP and PVC, new installation possibilities arise. The specially designed two-stage flotation process – within one tank – enables more efficient separation of floatable particles and ensures a higher dryness level of the floated sludge, thanks to the patented conical design.

For larger throughput capacities exceeding 35 m³/h, multiple units can be connected in parallel, providing additional redundancy while guaranteeing a higher level of process security. Optimized for continuous cleaning, this system avoids dead zones and reduces sediments almost completely. With integrated pH control and precise air supply, our CCF system offers a reliable solution for the highest demands in the industry, ideal for applications such as meat processing, food industry, metal processing, and plastic recycling.

CCF — Pressure relief flotation taken a step further

The center of purification
Used, among other things, in the food industry, in plastic recycling or for interior tank cleaning.?
raindrop icon

Patented 2in1 process
With its 2-in-1 flotation process, the IWAT system offers a footprint that is at least 50% smaller and up to 30% reduction in COD and BOD5 compared to conventional systems.

Scalable
Throughputs from 2 m³/h to 35 m³/h — for even more performance, we connect several systems in series.

PP and PVC
The lightweight plastic construction is not only corrosion-resistant but also enables entirely new integration possibilities.

CCF level 1
Effective sludge removal — in the stage 1 inner ring
The flotation sludge exits with a high degree of dryness through the conical construction
and is cleared out with a very small skimmer for safety reasons,
to direct the cleaned water to stage 2 and remove any remaining sludge particles completely.

CCF level 2
Additional sediment removal — in level 2 outer ring
The outer ring of the Compact Conus flotation serves as additional second purification stage,
removing almost all remaining floating flakes from the wastewater surface through the water jets
‍
Integrated pH control
Space-saving, efficient, durable — internal pH regulation
Die integrated pH regulation guarantees a optimal use of resources,
Is huge space-saving, efficient and
easy to calibrate.

Ladder holder
Simply useful — the ladder holder
An integrated ladder holder is remarkably simple
greatly enhances maintenance convenience
and ensures the safety of your employees.
