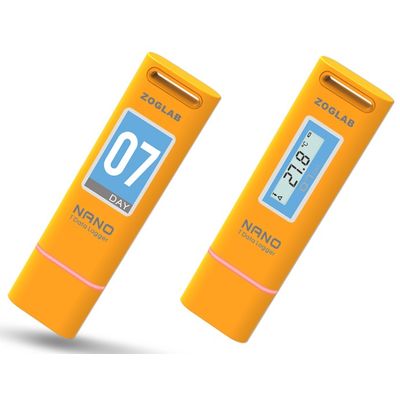

ZOGLAB - Model Nano-T -Compact Data Logger for Temperature
Compact size for portable using; integrated USB interface for a convenient connection with PC. Visual alarm when temperature or humidity is out of limit. Housing material is free of toxicity and halogen, which is in compliance with food and drug safety requirements. Suitable for temperature data collection in narrow space.
Most popular related searches
data logger
environmental instrument
safety regulations
flame retardant
food safety regulations
compact temperature logger
NTC sensor
food safety
temperature logger
Measuring Data
- T Measuring Range: -30?~70?,-40?~85?(No display)
- T Accuracy: ±0.3?(23?±2?),full scale ±0.5?
- T Resolution: 0.1?/0.2?
General
- Memory Size: 7 / 15 / 30 / 45 / 60 / 90 / 120 days
- Alarm: Highlight LED indicator with dual colors
- Sampling Interval: 10s
- Logging Interval: 5min (Memory Size 7 / 15 / 30 / 45 days) , 10min (Memory Size 60 / 90 days)
- 15min (Memory Size 120 days)
- Start with Delay Time: 1~120s
- Start Mode: Start Immediately / Time-lapse Start / Timing Start / Magnetic Start
- End mode: Full / Timing End / Magnetic End
- Timing start / end: Random start/End with format YYMMDD HHMMSS
- Storage Temperature: -50?~90?
- ESD Protection: ±25KV
- Interface: USB 2.0
- Battery: 3.6V lithium battery (Rechargeable)
- Battery Lifetime: 45~150 days(Working time)
- Recharge Time: ≥300 cycles
- Software: Quick Log
- IP Class: IP64
Sensing Probe
- Model: Digital Sensor / NTC
General Feature
- Dimensions: 79×22×7.4mm
- Housing: ABS+PC,flame-retardant,toxicity and halogen free
- Display Area: 21.5×5.5mm
- Weight: 12g
