Hofstetter BV

- Model Sparky - Compact Degassing Unit

From

0

The HOFGAS- Sparky compact degassing unit is used for household waste landfills without gas utilisation.


HOFGAS- Efficiency high temperature flare provides controlled combustion. Landfill gas is burned at temperatures between 1’000 and 1’200°C and a defined residence time. This ensures compliance with the emission regulations.

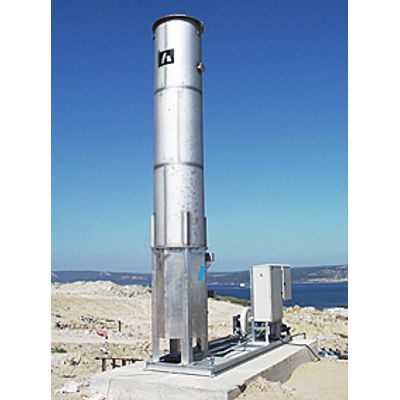

All components are mounted onto a robust galvanised steel skid. The control elements are integrated in a weather proof control cabinet directly fixed onto the supporting construction. The PLCsystem ensures a reliable operation of the plant.

Using a simple crane, the plant can be set up on a prepared site in very short time. The HOFGAS- Sparky complete extraction and flaring unit is immediately ready for operation.

Safe, high-level degassing at good value for money.

  • Compact, safe, good value for money
  • High safety standard
  • Concealed flame
  • Combusting temperature 1'000 - 1’200 °C
  • Residence time > 0.3 seconds
  • Automatic temperature control
  • Quick and easy commissioning
  • Minimal maintenance requirements

  • Gas flow rate: 40 - 1’000 Nm3/h
  • Burner capacity up to: 5’000
  • Pressure at gas inlet: -50 mbar
  • Blower pressure rise max.: 160 mbar
  • Methane concentration: 30 - 50 vol.%
  • Combustion temperature: 1’000 - 1’200 °C
  • Residence time: > 0.3 s
  • Turn down ratio: 1 : 5
  • Expected sound pressure < 69 dB(A) level at full load (at 15m distance and 2m height)

  • EEx motor
  • Flame arrester
  • Slam shut valve
  • Burner control device with UV-detection

  • Pre-dewatering
  • Foundation
  • Electricity supply
  • Gas line connection
  • Condensate disposal

  • Dewatering lance
  • Gas analysis system
  • Pressure and temperature measuring devices
  • Flow measuring
  • Frost protection
