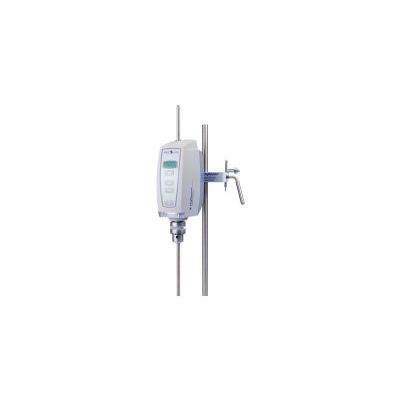

Caframo - Model BDC2002 -Compact Digital Laboratory Stirrers
FromCaframo Limited
Caframo’s BDC2002 offers ultimate versatility and maximizes productivity. With the push of a button, the unique Stirlight™ lights up so that solutions can be seen clearly. Engage the Auto Start feature to start or resume stirring automatically when power is supplied by control equipment or after a power outage. Included in each purchase: Overhead stirrer motor, chuck, chuck key, support rod, external power supply, grounded power cord, manual in four languages (English, French, Spanish and German) and three year warranty.
Most popular related searches
laboratory stirrer
overhead laboratory stirrer
digital laboratory stirrer
overhead stirrer
epoxy coating
- Speed: 40-2002 rpm
- Volume Maximum: 25 L (6.5 US Gallons)
- Viscosity Maximum: 15 000 mPa·s (15 000 cP)
- Torque Maximum: 70 N·cm (6 in-lbs = 100 in-oz)
- Output Power: 50 Watts (1/15 hp)
- Speed Display: Yes
- Speed Accuracy: +/- 1 rpm
- Torque Display: No
- Zero Torque: No
- Timer: No
- Through Shaft: Yes
- Chuck Maximum Shaft Diameter: 9.5 mm (3/8”)
- Chuck Guard: Yes
- Housing: Epoxy-coated zinc
- Weight: Power Supply: 0.5 kg (1 lb), Stirrer: 3.0 kg (7 lb)
- IP Rating: IP 42
- Voltage: 120 V/230 V
- Frequency: 50/60 Hz
- Ambient Temperature Operation: 5-40°C (41-104°F)
- Relative Humidity Operation: 80%
- Warranty: 3 years
- Stirlight
- Sealed housing
- Brushless DC motor
- Digital display
- Through shaft
- Electronic digital control
- Allows monitoring of mixing properties of batches
- Keeps liquids and moisture out in aggressive environments
- High efficiency (less heat)
- Precise speed adjustment
- Easy impeller adjustment saves time
- Set speed is maintained as viscosity changes
- Automatic overload protection
