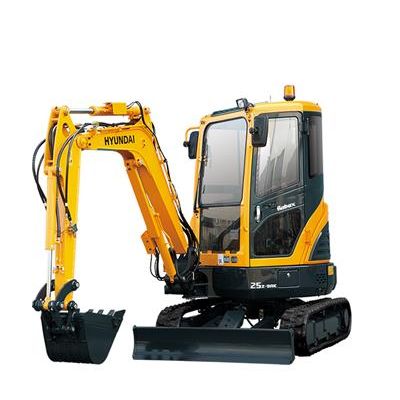

Hyundai Construction - Model R25Z-9AK -Compact Excavators
Innovative hydraulic system technologies make the 9A series excavator fast, smooth and easy to control. 9A series is designed for maximum performance to keep the operator working productively. Operating a 9A series is unique to every operator. Operators can fully customize their work environment and operating preferences to fit their individual needs.
Most popular related searches
Net Power
- 23.2 hp (17.3 kW) at 2,350 rpm
- 2,560 kg (5,640 Ibs) / 2,430 kg (5,360 Ibs)
- 0.07 m3 (0.09 yd3)
Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The R25Z-9AK is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.
- ENGINE MODEL Kubota D1305
- NET POWER 23.2 hp (17.3 kW) at 2,350 rpm
- OPERATING WEIGHT 2,560 kg (5,640 Ibs) / 2,430 kg (5,360 Ibs)
- BUCKET RANGE 0.07 m3 (0.09 yd3) - 0.18 m3 (0.24 yd3)
- SWING SPEED 9.1 rpm
- TRAVEL SPEED (MPH) 4.3km / 2.4km (2.7mph) / (1.5mph)
- MAX. DIGGING DEPTH (FT/IN) 2,420mm (7 ft 11 in)
- MAX. DIGGING REACH 4,480mm (14 ft 8 in)
- TAIL SWING RADIUS (FT/IN) 775mm (2 ft 7 in)
- BUCKET BREAKOUT FORCE (SAE) 4,320 lbf (19.2 kN)
- ARM CROWD FORCE 1,490 kgf (3,280 lbf)
Performance
- Kubota Tier 4 Final Engine
- Boom Swing
- Dozer Blade
- Zero-Tail Swing
Convenience
- Monitor
- Suspension Seat
- Ergonomic Controls & Switches
- Cab Entry
Serviceability
- Centralized Lubrication
- Long-life Components
- Easy Access
- Durable Cooler
