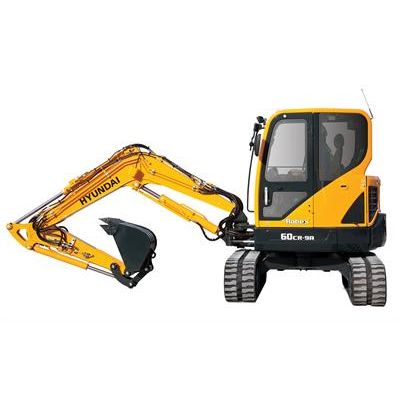

Hyundai Construction - Model R60CR-9A -Compact Excavators
Hyundai 9A series compact excavators bring big power to small spaces. Each model features a Tier 4 Final engine that provides impressive performance and reduced fuel consumption. You’ll appreciate the hefty power, durability and reliability of these compact machines, along with their ability to work productively in confined spaces.
Most popular related searches
Performance
- YANMAR Tier 4 Final Engine
- Boom Swing
- Dozer Blade
- Compact Radius Tail Swing
Convenience
- Monitor
- Suspension Seat
- Ergonomic Controls & Switches
- Cab Entry
Serviceability
- Centralized Lubrication
- Long-life Components
- Easy Access
- Durable Coole
- ENGINE MODEL: Yanmar 4TNV98C
- NET POWER: 63 hp (47 kW) at 2,200 rpm
- OPERATING WEIGHT: 6,100 kg (13,450 Ibs)
- BUCKET RANGE: 0.07 m3 (0.09 yd3) - 0.18 m3 (0.24 yd3)
- SWING SPEED: 8.8 rpm
- TRAVEL SPEED (MPH): 4.0 km/hr (2.5 mph)
- MAX. DIGGING DEPTH (FT/IN): 3,570 mm (11 ft 9 in)
- MAX. DIGGING REACH: 6,150 mm (20 ft 2 in)
- TAIL SWING RADIUS (FT/IN): 1,080 mm (3 ft 7 in)
- BUCKET BREAKOUT FORCE: (SAE) 36.6 kN (8,228 lbf)
- ARM CROWD FORCE: 2,700 kgf (5,950 lbf)
