SewaTOR - Compact, Flexible and Competitive Plants For Wastewater and Sludge Pretreatment

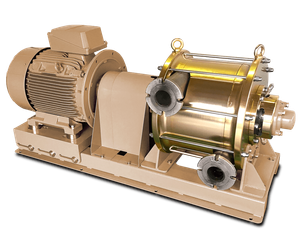

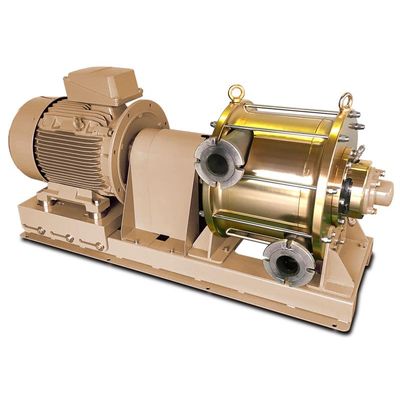

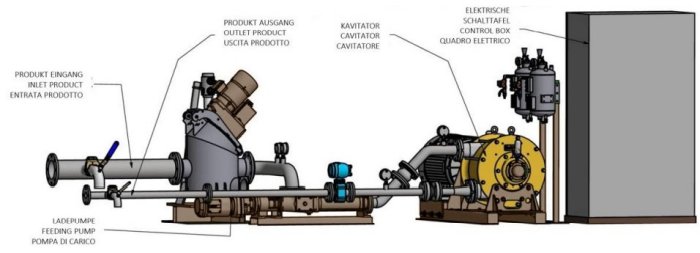

SewaTOR is the effective and efficient innovative patented sewage sludge pretreatment technology that exploits the physical phenomenon of controlled cavitation. SewaTOR has been designed as a cutting-edge wastewater treatment technology to work continuously and meet the quality standards of all manufacturers and users of WWTP in the world. SewaTOR, as a sludge disintegration system, can be supplied as a component to be integrated on the plant or on a skid / container with pump, electrical panel, PLC and sensors.
SewaTOR is the innovative patented pretreatment technology for WasteWater Treatment Plants. It takes advantage on the physical phenomenon of controlled cavitation to maximize the efficiency of the biological oxidation and anaerobic digestion processes and obtain an important reduction of the sludge to be disposed of and of the voluminous foams.
Dry Matter Concentration: Over 30%
Yield: Over 50%

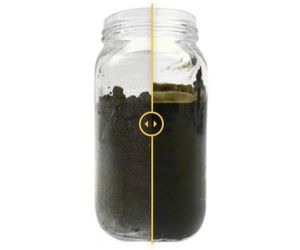

Viscosity Reduction: Over 80%
Sizes From 0.5 m3/h up to 1000 m3/h
- Controlled cavitation without maintenances
- Transfer of physical energy and not mechanical energy
- Treatment efficiency in a single passage
- Capacity to treat sludges with high solid content concentration
- Plug & Play Design can be integrated in any existing project and plant
- Models for every type of plant and flow
- Possibility to adjust the pretreatment's intensity according to the goal
- Optimization of the existing process and simplification of the plants
Optimize Disposal Costs:
SewaTOR increases the disintegration of particles and reduces the sludge to be disposed of and voluminous foams.
Increases The Yield:
SewaTOR maximizes the yield of oxidation and digestion processes and reduces the retention time.
SewaTOR definitely improves viscosity and reduces mixers consumptions.
- Municipal and industrial wastewater plant’s manufacturers
- Public and private companies with waste water treatment plants

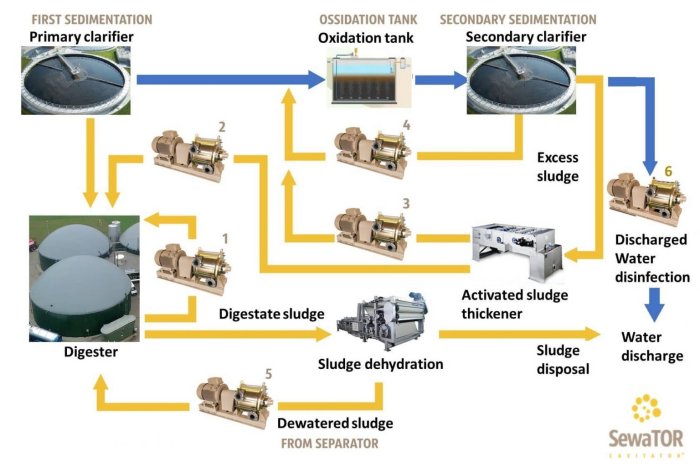

01. Recirculation on Digester
Defragments and solubilize the organic sludge received in the digester, increasing homogeneity, and reducing viscosity. Cavitation acts by destroying bacterial cell walls and membranes resulting in a release of intracellular and extracellular matter, resulting in digestion processes acceleration. This significantly augments the efficiency of the digester, decreasing the processing time, producing a much higher biogas yield and a lower amount of stabilised sludge to be dispose off.
02. Loading from Thickener to Digester
The thickened activated sludge can be treated by SewaTOR leading to a strong reduction of sludge viscosity entering the digester. SewaTOR improves the sludge rheology, resulting in superior pumpability and a decrease of pumping cost and plant energy consumption.
03. Recirculation from Thickener to Biological Oxidation Tank
Recirculating from the oxidation tank to maintain a constant level of bacteria. Its bulky filamentous structure will be disaggregated resulting in a reduction of the oxidation time, the improvement of nitrification alongside a lower energy consumption of sedimentation process mixers. Moreover, there is a minimisation of the foaming problems common during secondary treatment. Cavitation formed free radicals significantly contribute to full elimination of pollutants and toxic chemicals during the oxidation period.
04. Recirculation from Sedimentation Tank to Oxidation Tank
Activated sludges can be recirculated directly from the secondary sedimentation tank. The positive effects produced by SewaTOR are equivalent to those obtained in location 3.
05. Recirculation from Separator to Digester
Part or all the dewatered sludge ready for disposal can be recirculated to the digester. SewaTOR makes possible its pumpability and prevents this compact and dehydrated material from reducing the efficiency and processing time of the digester. The dry matter content of dewatered sludge can reach 30%. Moreover, with this application the organic fraction of the digestate sludge can be 100% converted, zeroing the residual sludge to dispose of and resetting the volume of organic sludge in the digester.
06. In the Tertiary Treatment to Eliminate Pathogens
Sterilization Germs and virus can be fully removed by processing the discharged water with SewaTOR reaching a controlled temperature of 70º C.
07. In the Tertiary Treatment With Integration of UV-C and O3
SewaTOR with also the integration of UV-C and/or O3, can eliminate these pathogens, avoiding the use of harmful chemicals.
ADVANTAGES FOR MANUFACTURERS
With SewaTOR® it's possible to design more compact, flexible and competitive plants
Compact: Reduction in tank's volume: SewaTOR® increases yield.
Flexible: Reduction of mixers number and of installed power of the recirculations: SewaTOR® reduces the viscosity and sedimentation of the sludge.
Competitive: When the plant's size and the powers of the installed users are reducted, it's possible optimize the project's costs: SewaTOR® significantly improves the efficiency of the process.
ADVANTAGES FOR FINAL USERS
With SewaTOR® it is possible to optimize costs, increase yield and maximize plant management
Optimize costs: Reduction of the volume of sludge to be disposed of and of the voluminous foams. SewaTOR® effectively breaks down all organic particles.
Increase the yield: Reduction of retention times. SewaTOR® maximizes the efficiency of the digestion and oxidation processes.
Maximize the plant management: Reduction in viscosity. SewaTOR® optimizes the mixers and recirculation systems consumption.
