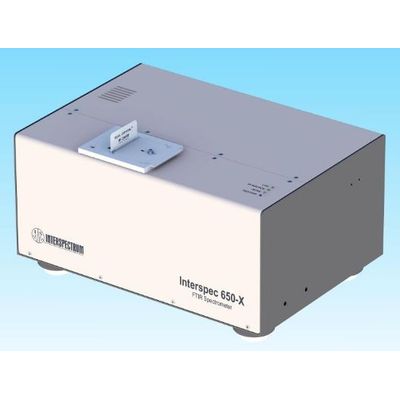

SAFIR Interspec - Model 650-X -Compact FTIR Spectrometer

Wavelength range, IR 7000 to 400 cm-1. Wavelength range, IR 6000 to 600 cm-1 (with ZnSe ATR accessory). Wavelength range, NIR 14000 -5800 cm-1 or 9000-3850 cm-1. Resolution 1 cm-1 (option 0.5 cm-1). Sample handling 1 or 3 bounce ATR, transmission, reflection. Beamsplitter Multicoated KBr (option ZnSe, fused silica). Frequency reference VCSEL laser. IR source High intensity air cooled ceramic. Data acquisition system 24 bit, high speed. Software Windows based. Interface USB 2.0. Power 12 VDC, 25 W. Dimensions W35xD25xH18 cm. Weight 14 kg.
