Komax Gamma - Model 450 -Compact, Fully Automatic Wire Processing Machine
FromKomax AG

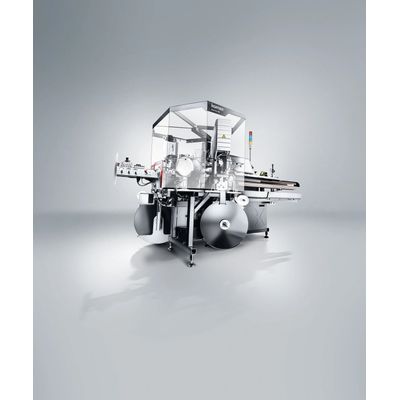

Gamma 450 - the compact, fully automatic wire processing machine - processes crimps and seals on both sides with a wire cross section of 0.13 –4 mm². The fully automatic Gamma 450 wire processing machine is a compact device for its performance. Thanks to fully integrated, seamless quality monitoring with CFA/CFA+, ACD and Q1250 and optional modules, it can be adapted to high and future-oriented requirements. By individually configuring the machine at four stations, the processes can be set up to meet the respective needs. This makes the Gamma 450 particularly suitable for the automotive industry and its changing requirements for durable machines. The ergonomic design, logical workflows and simple user guidance increase economic efficiency. Terminal reels and crimp tools can also be replaced during operation thanks to the STC tool and terminal reel quick changer.
Most popular related searches
compressed air
sample processing
optical sensor
precision monitoring system
process automation
integrity monitoring

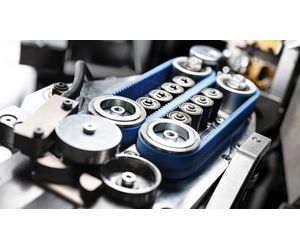

Quick setup and wire insertion without guide elements

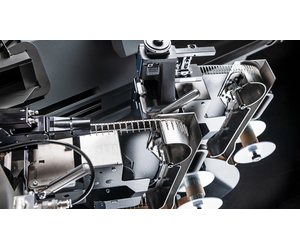

With the additional integrated STC manual changeover system, two crimp tools and terminal reels can be changed in the shortest possible time.

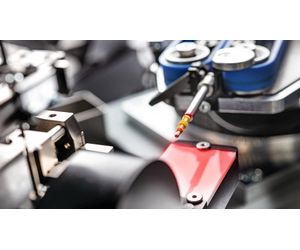

With the dual head, the wires are cut precisely. The incision monitoring system checks the slightest contact of the blade with the conductor and sorts out the wires.

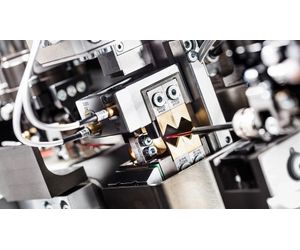

To meet the most exacting quality requirements, the Q1250 strip quality monitoring system uses an optical sensor during operation to check every individual strand for defects.
Like all fully-automatic machines, the Gamma 450 is easy to operate. The parameters and operation can be set up directly on the crimp module.
- Wire cross section min.: 0.13 mm²
- Wire cross section max.: 4 mm²
- Wire length, single-sided processing min.: 60 mm
- Wire length, processing on both sides min.: 60 mm
- Wire length, processing on both sides (optional from) min.: 60 mm
- Wire length max.: 65000 mm
- Strip length side 1 min.: 0.1 mm
- Strip length side 1 max.: 29.5 mm
- Strip length side 2 min.: 0.1 mm
- Strip length side 2 max.: 29.5 mm
- Strip length, full stripping side 1 (blade in wire line) max.: 17.5 mm
- Strip length, full stripping side 2 (blade in wire line) max.: 17.5 mm
- Strip length, full stripping side 1 (blade next to wire line) max.: 35 mm
- Strip length, full stripping side 2 (blade next to wire line) max.: 35 mm
- Strip length, partial stripping side 1 (blade in wire line) max.: 16.5 mm
- Strip length, partial stripping side 2 (blade in wire line) max.: 16.5 mm
- Strip length, partial stripping side 1 (blade next to wire line) max.: 21 mm
- Strip length, partial stripping side 2 (blade next to wire line) max.: 35 mm
- Dependency of strip length: The strip length depends on the guide tube selected, on the outer diameter of the wire and on diverse functions such as cutting pulled strands and quality monitoring (Q12XX). Strip length for half stripping without cutting pulled strands, without quality monitoring (Q12XX) and with a short guide tube.
- Wire outer diameter max.: 3.9 mm
- Number of process modules side 1: 2
- Number of process modules side 2: 2
- Length accuracy: Repetition accuracy: ± (0.2% + 1.0mm)
- Noise level (without crimp modules) max.: 75 dB
- Electrical connection: 3 × 208 – 480V, 50/60Hz, 2.5kVA
- Electrical connection (optional): 3 × 400V, 50/60Hz, 2.5kVA
- Minimum permissible cross section of connection lines: 94 psi to 104 °F / 87 psi ab 104 °F
- Compressed-air connection: 5 – 8 bar
- Air consumption with wire length of 500mm (19.7inch) (Crimp/Crimp): 5.9 m³/h
- Air consumption with wire length 500mm & 19.7 inch (Seal Crimp/Seal Crimp): 8.4 m³/h
- Recommended operating pressure ±0.5bar/7.25psi: 6 ±0.5 bar
- Operation outside the recommended operating pressure: Non-compliance with the recommended operating pressure can restrict the proper functioning of peripheral devices. Please also observe the technical data for peripheral devices.
- Maximum permissible operating pressure depending on the ambient temperature: 6.5 bar to 40 °C / 6 bar above 40 °C
- Weight (approx.): 920 kg
- Weight (incl. 2 crimp modules and 2 seal modules) approx.: 920 kg
- Width: 1445 mm
- Length: 3388 mm
- Length with basic module 2m/78.74 inch: 3388 mm
- Length with basic module 4m/187.48 inch: 5333 mm
- Height (with safety cover closed): 1775 mm
- Height (with safety cover open): 2775 mm
- Ambient temperature min.: 10 °C
- Ambient temperature max.: 45 °C
- Humidity, non-condensing: 30 - 90 %
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
- Hard, tough wires: In the case of extremely hard, ductile or thick-stranded wires, processing might not be possible even within the cross section range. In case of doubt, Komax will be happy to provide processing samples of your wires.
- Wire cross section min.: AWG26
- Wire cross section max.: AWG12
- Wire length, single-sided processing min.: 2.36 in
- Wire length, processing on both sides min.: 2.35 in
- Wire length, processing on both sides (optional from) min.: 2.36 in
- Wire length max.: 2559 in
- Strip length side 1 min.: 0 in
- Strip length side 1 max.: 1.16 in
- Strip length side 2 min.: 0 in
- Strip length side 2 max.: 1.16 in
- Strip length, full stripping side 1 (blade in wire line) max.: 0.7 in
- Strip length, full stripping side 2 (blade in wire line) max.: 0.7 in
- Strip length, full stripping side 1 (blade next to wire line) max.: 1.4 in
- Strip length, full stripping side 2 (blade next to wire line) max.: 1.4 in
- Strip length, partial stripping side 1 (blade in wire line) max.: 0.64 in
- Strip length, partial stripping side 2 (blade in wire line) max.: 0.65 in
- Strip length, partial stripping side 1 (blade next to wire line) max.: 0.83 in
- Strip length, partial stripping side 2 (blade next to wire line) max.: 1.4 in
- Dependency of strip length: The strip length depends on the guide tube selected, on the outer diameter of the wire and on diverse functions such as cutting pulled strands and quality monitoring (Q12XX). Strip length for half stripping without cutting pulled strands, without quality monitoring (Q12XX) and with a short guide tube.
- Wire outer diameter max.: 0.15 in
- Number of process modules side 1: 2
- Number of process modules side 2: 2
- Length accuracy: Repetition accuracy: ± (0.2% + 0.039 in)
- Noise level (without crimp modules) max.: 75 dB
- Electrical connection: 3 × 208 – 480V, 50/60Hz, 2.5kVA
- Electrical connection (optional): 3 × 400V, 50/60Hz, 2.5kVA
- Minimum permissible cross section of connection lines: 94 psi to 104 °F / 87 psi above 104 °F
- Compressed-air connection: 73 – 116 psi
- Air consumption with wire length of 500mm (19.7inch) (Crimp/Crimp): 208.4 ft³/h
- Air consumption with wire length 500mm & 19.7 inch (Seal Crimp/Seal Crimp): 296.6 ft³/h
- Recommended operating pressure ±0.5bar/7.25psi: 87 ±7.25 psi
- Operation outside the recommended operating pressure: Non-compliance with the recommended operating pressure can restrict the proper functioning of peripheral devices. Please also observe the technical data for peripheral devices.
- Maximum permissible operating pressure depending on the ambient temperature: 94 psi to 104 °F / 87 psi above 104 °F
- Weight (approx.): 2028 lb
- Weight (incl. 2 crimp modules and 2 seal modules) approx.: 2028 lb
- Width: 56.9 in
- Length: 133.4 in
- Length with basic module 2m/78.74 inch: 133.4 in
- Length with basic module 4m/187.48 inch: 210 in
- Height (with safety cover closed): 69.9 in
- Height (with safety cover open): 109.3 in
- Ambient temperature min.: 50 °F
- Ambient temperature max.: 113 °F
- Humidity, non-condensing: 30 - 90 %
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
- Hard, tough wires: In the case of extremely hard, ductile or thick-stranded wires, processing might not be possible even within the cross section range. In case of doubt, Komax will be happy to provide processing samples of your wires.
