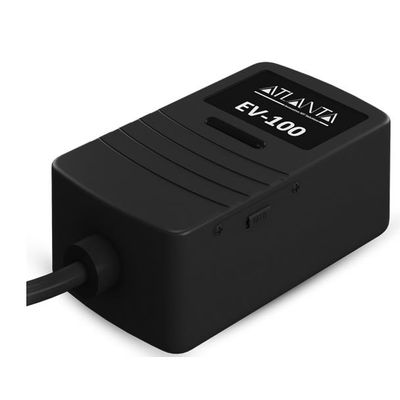

Atlanta - Model EV-100 -Compact & Lightweight GPS Data Logger Device
EV-100 is a compact & lightweight device which is custom designed for Electric Vehicle tracking. Be it a 2-wheeler, 3-wheeler, or multi-axle Electric Vehicle, EV-100 is a one-stop solution for LBS (Location-Based Services).
Most popular related searches
data logger
electric vehicle
GPS antenna
vehicle tracking
GNSS
ground penetrating radar technology
ground penetrating radar data
- Module SIMCOM
- Technology GPRS,GSM,GPS
- Tracking
- GNSS Antenna GPS,GLONASS,AGPS,QZSS,GAGAN,BDS
- Channel 33 Tracking /99 Acquisition channel
- Sensitivity -167dbm
- Accuracy <3m
- Hot Start <1sec
- Warm Start <21sec
- Cold Start <22sec
- Network
- 2G Band Quad-band GSM 850/900/1800/1900MHZ/DUAL BAND(900/1800MHZ)
- RF Power Class 4(2W@850/900MHZ)/CLASS 1 (W@1800/1900MHZ)
- Data GPRS Multislot class,coding scheme CS 1,2,3,4
- Data security AES 256 encryption ,FTPS,HTTPS
- Communication Protocol TCP/IP/UDP/FTP/HTTP
- Transport Layering Security TLS, SSL
- Hardware Characteristics
- Voltage Range 8-96V
- Working Current Sleeping mode
- Operating Temperature -10 ° C to 80° C
- Humidity 5% to 95%
- Battery 250mAH
- I/Os & Indicators D/I: 2 D/O: 1 A: 1*
- GNSS/GPS Antenna Internal High Gain Antenna
- USB 2.0 MICRO USB
- Indicators 3 LED’s (Power, GSM, GPS)
- Sim Micro SIM
- Memory 20,000 packets
