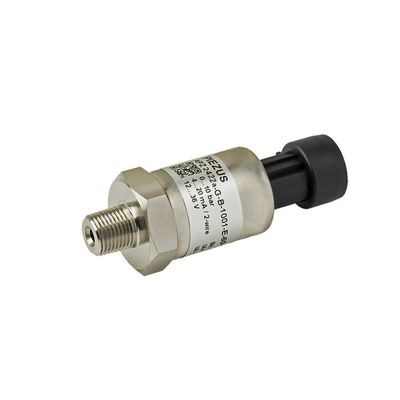

PIEZUS - Model APZ 2422 a -Compact line pressure transmitter
FromPIEZUS LLC
APZ 2422a compact line pressure transmitters are primarily offered to OEM manufacturers at special prices and in MOQ of 50 pieces per part number. Based on a welded stainless steel silicon piezoresistive sensor, this transmitter is a great choice for the applications where elastomeric seal is not desirable. APZ 2422a supports ZERO TRIM feature by use of ZCON 100 configurator (*).
(*) ZCON 100 configurator is sold separatelyMost popular related searches
Ranges: 6 bar up to 600 bar
Pressure type: gauge
Accuracy: ±0.5%, ±1%
Output: 4...20 mA / 2 wire
Sensor: silicon piezoresistive
Pressure port: G1/4”; 1/4” NPT; 1/8” NPT; 7/16’’-20 UNF etc.
Electrical connection: Packard Metri-Pack, DIN 43650C, AMP-Superseal 1.5, cable gland
Media temperatures: -40...+125 °C
Ambient temperatures: -40...+85 °C
OEM applications
Hydraulics and pneumatics
Pumps and compressors
Industrial machinery
Transportation
HVAC/R
