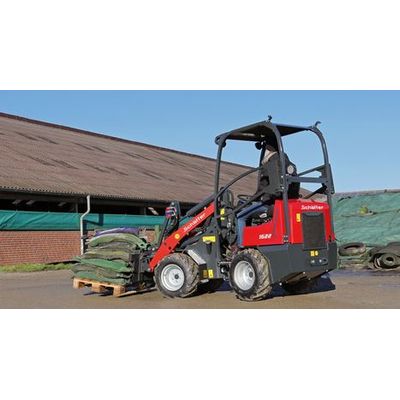

Schäffer - Model 1622 -Compact Loader
The electric yard loader lie masters even the tightest working environments with ease. Based on the proven 1622 model, the lie offers emission-free working and opens up new application possibilities in stables and agricultural facilities where manual labour or larger machines were previously required.
Most popular related searches
sound pressure level
hand arm vibration
exhaust gas treatment
temperature indicator
hand arm
gas treatment
exhaust gas emissions
tipping bucket
gas emissions treatment
exhaust treatment
- 3-cylinder diesel engine Kubota D902, 16.2 kW (22 HP)
- Hydrostatic four wheel drive with foot pedal control
- Tyres 23x8.50-12 AS, offset +60
- Genuine Schäffer axle
- Combined oil cooler
- Drum brake as parking brake
- Maintenance free articulated pendulum joint
- Restraining system for protection roof
- LED working headlights: 2 x front, 1 x rear
- Parallel lift
- Mechanically operated additional controller
- Working hydraulics: 28 l/min
- Adjustable steering column
- Hour meter, fuel control lamp and temperature indicator
- Mechanical hand throttle
- Driver-on-board switch
- Quick-change frame SWH with hydraulic tool lock
- Engine
- Type: 3-cylinder diesel engine Kubota D902, 16.2 kW (22 HP)
- Output: 16,2 kW (22 HP)
- Exhaust gas treatment / emission level: - / V
- Tyres
- Standard tyres: 23x8.5-12 AS
- Option I: 23x8.5-12 SKD/MultiTrac
- Option II: 23x10.5-12 AS/MultiTrac
- Electric system
- Operating voltage: 12 V
- Dimensions
- (A) Wheelbase: 1,345 mm
- (B) Chassis length: 2,450 mm
- (C) Overall length with standard bucket: 3,050 mm
- (D) Digging depth: 80 mm
- (E) Max. working height: 2,635 mm
- (G) Loading height with pallet forks: 2,020 mm
- (H) Max. dumping height: 1,510 mm
- (I) Front end height: 1,390 mm
- (J) Dumping width: 195 mm
- (K) Seat height: 1,010 mm
- (L) Protective roof height: 1,990 mm
- (M) Max. bucket pivot point: 2,230 mm
- (N) Overall width / option: 890 / 1,060 mm
- (O) Inner turning radius: 970 mm
- (P) Outer turning radius: 1,875 mm
- (Q) Outer radius with standard bucket: 2,222 mm
- Drive
- Traction hydraulics: Hydrostatic (accelerator pedal)
- Axles: Original Schäffer axles, 5 wheel nut rim
- Speed: 16 km/h
- Brakes and steering
- Service braking system: Hydrostatic
- Parking brake: Mechanical drum brake
- Steering: Fully hydraulic articulated-swivel steering
- Tank capacity
- Fuel: 25 l
- Hydraulic oil: 22 l
- Working hydraulics
- Delivery rate / option: 28 l/min
- Operat. pressure: 200 bar
- Weights
- Operating weight protective roof incl. Original tyres, driver and standard bucket: 1,250 kg
- Lifting capacity: 810 kg
- Tipping load, straight, pallet fork acc. to ISO 8313: 600 kg
- Tipping load, straight, bucket acc. to ISO 8313: 800 kg
- Tipping load, articulated, pallet fork acc. to ISO 8313: 450 kg
- Tipping load, articulated, bucket acc. to ISO 8313: 580 kg
- Payload, pallet fork, even ground acc. to EN 474-3: 360 kg
- Payload, pallet fork, uneven ground acc. to EN 474-3: 270 kg
- Payload bucket acc. to EN 14397-1: 290 kg
- Sounds and vibration
- Sound pressure level LpA: 84 db(A)
- Sound power level guaranteed LwA: 101 db(A)
- Sound power level equivalent LwA: 100 db(A)
- Hand/arm vibration acc. to ISO 8041: < 2.5 m/s²
- Total body vibration acc. to ISO 8041: < 0.5 m/s²
