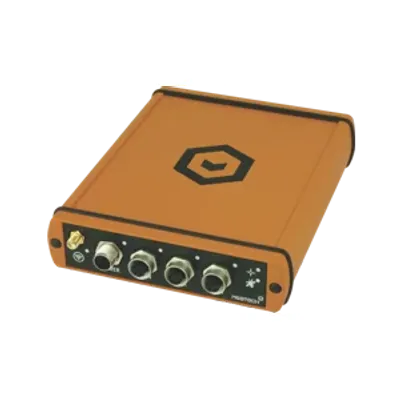

MGB-TECH - Model AKKI2 -Compact Machine Control GNSS Receiver
The AKKI2 GNSS receiver is engineered for precise machine control applications, integrating essential functionalities into a compact design. It features advanced galvanic isolation between the CAN bus and power supply, minimizing ground loops and ensuring stable system operation. Equipped with a robust aluminum housing, it meets demanding environmental requirements with an IP65 ingress protection rating. This receiver supports multi-constellation RTK for high accuracy and includes a dual antenna configuration with a built-in GPRS modem for seamless NTRIP server connectivity. The device offers multiple connectivity options including an integrated UHF radio, WiFi access point, and Ethernet port, facilitating comprehensive data streaming to controllers. With three CAN ports providing 24V output and overcurrent protection, it supports extensive sensor data integration. Additionally, the AKKI2's updated cooling technology extends operational limits while stainless steel inserts enhance its durability, ensuring reliable performance in diverse industrial settings.
Machine control GNSS receiver
- Compact size
- Galvanic isolation between CAN bus and power supply
- Integrated UHF radio
- Integrated wifi access point and ethernet port
- GNNS with multi constillation RTK
- Sturdy aluminium housing
Our second generation GNSS receiver is specifically designed for machine control
applications. This receiver brings all the necessary functionality for a machine control application in one small device. Stream all your sensor and GNSS data over a single WIFI or ethernet to your controller.
Integrated GPRS NTRIP
Our dual antenna receiver has a build-in GPRS modem which allows you to connect straight to an NTRIP server for differential corrections. The NTRIP client can be configured on the web front of the device
Aluminium housing
Three integrated CAN ports enables you to stream sensor data to your application and read out machine or engine
parameters. Every CAN port has 24V power delivered from the AKKI4 unit with dedicated over current protection and CAN termination.
Galvanic isolation
To avoid ground loops, the power supply is galvanically isolated. Because the CAN bus is an important part of your system, we also provide a stable 24V to the bus that is again galvanically isolated from the rest of the interfaces.
UHF
Integrated UHF
A series of LED indicators such as a power control, Can converter connection check, data communication and more are provided to give a clear and intuitive status check ensuring seamless monitoring and operation.
WIFI access point
The integrated 4G modem provides reliable internet connectivity in demanding conditions. Internet can be shared to your application through Wifi or over the available ethernet ports.
Ease of use
An aluminum coated housing developed to withstand harsh machine control environments. Our newest cooling technology raises the operational limits of the receiver while offering protection from dust and water. Stainless steel mounting inserts ensure years of succesful operation.
Small size
Our AKKI4 2 is only 170 mm long and 140 mm wide which allows you to fit it where you need it.
Bottom connections
- 1 x M12 A-code 3P (Power)
- 1 x M12 A-code 8P female (COM1&2 + PPS)
- 1 x M12 D-code 4P female (Ethernet)
- 1 x M12 A-code 4P male (CAN)
- 1 x TNC (GNSS main)
- 1 x TNC (GNSS aux)
- 1 x TNC (GPRS)
- 1 x TNC (WIFI 802.11b)
- 1 x metal rotary SIM card cover
CAN interface
- Fully galvanic isolation
- Isolated 24V 20W power supply
GPRS modem
- Frequency bands 850, 900, 1800, 1900
Mechanical
- 171mm x 140.60mm x 36.60mm
- Extruded aluminum housing
- IP 65 ingress protection
- Weight: TBD
Environmental
- Operational temperature -20°C +50°C
Ethernet interface
- 4 pin 10/100Mb
Wifi interface
- 802.11 b/g/n
- 2.412 -2.472 Ghz
Power
- Wide input : 10-30VDC
