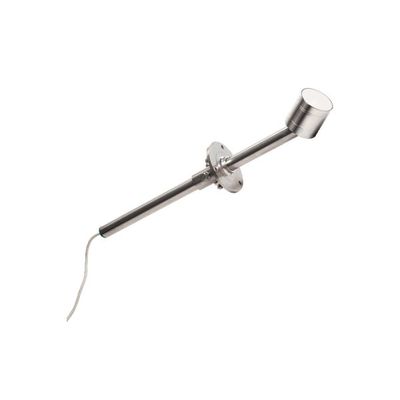

ACO - Model AMMS -Compact Moisture Measurement Sensor
The AMMS sensor combines the advantages of in-process calibration and direct measurement value transfer (e.g. 4...20mA) in its compact design.
As a compact sensor with an integrated microprocessor, the moisture measuring sensor AMMS forms the transition between the DMMS system and the analogue moisture measuring sensor MMS.
Apart from a power supply, this humidity sensor requires nothing but a display or a controller waiting for its measurement signal... The AMMS humidity measurement is designed for applications in which no multi-part systems are to be used and yet the precision of online calibration with the resulting automatic Compensation of the installation influences, is estimated. However, the AMMS humidity sensors can also be calibrated directly at any time using an integrated rotary encoder. However, this then takes place outside the actual installation location.
- Compact - Complete : Sensor only! No evaluation unit is required
- Calibration in process : Sensor calibration in built-in condition
- Direct output signal : Analog standard signal (eg 4...20mA) directly from the humidity sensor
- Multipoint Calibration : For even more precise measurement results
- Capacitive humidity measurement
- Temperature range of the measuring material: 4…70°C
- Temperature compensation of the sensor electronics
- Direct measured value transfer from the sensor
- Multipoint Calibration
- Integrated averaging
- Convenient, clear calibration software, optional
- Alternatively, "direct" calibration, without software, is possible
- Integrated temperature sensor (Pt100)
- Various analogue standard signals: 4…20mA / 0…20mA / 0…10V
- Sensor for measurement in the silo
- Sensor for measurement in the mixer
