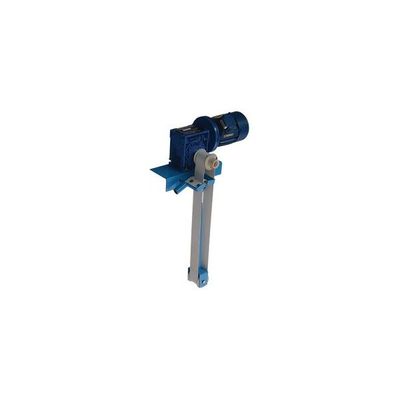

VH - Compact Oil Skimmer
Special Polymer Belt with smooth surface for facilitating adhesion of floating oil in the tank to its surface on either side and mounted on a drum & designed to skim minimum of 5 l/hr oil. Rotating Drum with knurled surface to impart low speed to the belt. Wiper Assembly with wipers made of Teflon to wipe off the oil adhering to the surface of the disc on either side. Mechanism at the bottom loop of the belt to provide enough tension to the belt while in rotation.
Most popular related searches
Standard Model sizes
- 2" width x 0.6 mtr length
- 2" width x 1 mtr length
- 2" width x 1.5 mtr length
- 2" width x 2 mtr length
- 2" width x 2.5 mtr length
Oil removal rate
- 5 lph(minimum)
- Fractional HP DC Motor to 25 W apprx, driven through single phase, 230 V+/-5% VAC, 50 Hz.
- Overall Size: 220(L) x 120(W) x 600(H) mm.
Materials of Construction
- Belt - Oleophilic polymer
- Frame – Mild Steel - Powder coated (SS if required)
