Ecocycle - Compact Package WWTP Unit
Ecocycle mobile wwtp systems designed as a simple solution for residential places that needs domestic wastewater treatment. Ecocycle provides easy installation and operation with high efficiency treatment process called “ Continuous system fix bed activated sludge process””.
Ecocycle compact systems contains all necessary stages, such as physical treatment ( primary treatment), aeration, clarification, disinfection, sludge storage section and all the mechanical - electrical equipments, piping, and instrumentation inside its compact structure as a mobile system.
- Screening
- Aeration
- Clarification
- Sludge Stabilization
- Disinfection
Wastewater fed by gravity or pumping is treated in aeration chamber so that bacteria inside converts the organic matter of wastewater into CO2 and water.
In the Ecocycle WWTP ventilation chamber, bacteria grow on specially shaped plastic (Fix Bed) plates that provide high bacterial concentration and purification efficiency, providing a large surface area.
This Media include high surface area, provide a large internal surface area for growth of microorganisms.
Compact treatment units - plants are covered under service and maintenance warranty. Our company provides replacement parts and technical service for the subsequent years.
- Villages & Small Settlements
- Construction Camps
- Military Facilities & Camps
- Mining & Drilling Camps
- Industrial Facilities
- Mass Housing Projects
- Touristic Facilities
- Residential Areas
- Refugee Camps
- Infrastructure Projects
- Schools & Hospitals
- Full automatic operation
- Minimum maintenance
- Modular design allows expansion
- Advanced Processing Technology
- High Treatment Efficiency
- Low Initial Investment and Operating Cost
- Compact Layout
- Silent and Odorless operation
- Quick installation and start up

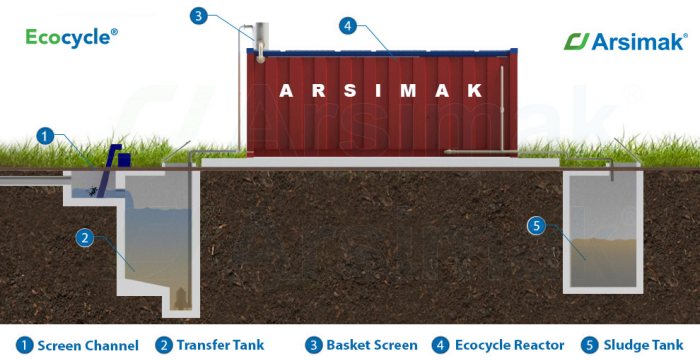

Screen Channel
The wastewater enters to the treatment plant from Pump Station where Manual Coarse Screen places, where big particles and grit larger than 20 mm are removed and collected in Coarse Screen. Then, the wastewater flows to the Transfer Tank.
Transfer Tank (Pump Station)
Transfer Tank (Pump Station) is used to overcome peak flows and collect wastewater before lifting to the system. The wastewater is pumped to the Ecocycle® Reactor by 2 Lifting Pumps (1 pump on duty, 1 pump are on standby).
- Pump starts lifting water by a signal from the level sensor.
- By the wastewater level sensors the pumps cannot run dry.
Basket Screen
A manual cleaned Basket screen is installed on the inlet of the Ecocycle Reactor to catch and retain any large objects from entering the WWTP system. Big particles larger than 8 mm are removed and collected in Coarse Screen
Automatic Screw Screen (Optional)
Before entering the Ecocycle® the wastewater also passes through the Automatic Screw Screen, where particles with diameter bigger than 5 mm are caught. Then the wastewater enters to the Reactor.
Screen Channel
The wastewater enters to the treatment plant from Pump Station where Manual Coarse Screen places, where big particles and grit larger than 20 mm are removed and collected in Coarse Screen. Then, the wastewater flows to the Transfer Tank.
Transfer Tank (Pump Station)
Transfer Tank (Pump Station) is used to overcome peak flows and collect wastewater before lifting to the system. The wastewater is pumped to the Ecocycle® Reactor by 2 Lifting Pumps (1 pump on duty, 1 pump are on standby).
- Pump starts lifting water by a signal from the level sensor.
- By the wastewater level sensors the pumps cannot run dry.
Basket Screen
A manual cleaned Basket screen is installed on the inlet of the Ecocycle Reactor to catch and retain any large objects from entering the WWTP system. Big particles larger than 8 mm are removed and collected in Coarse Screen
Automatic Screw Screen (Optional)
Before entering the Ecocycle® the wastewater also passes through the Automatic Screw Screen, where particles with diameter bigger than 5 mm are caught. Then the wastewater enters to the Reactor.
What are the benefits of the Ecocycle® biological container system treatment?
The technology used is ideal for applications where trained operators are not in place or where minimal operator entry is required. Modular design makes it easy to increase the number of units according to capacity.
That`s why Ecocycle® WWTP solutions are the best choice for a low-cost, automated and reliable wastewater treatment plant.
- Ease of operation
- Modular design allows expansion
- Quick installation and start up
- Low operating expenditure
- Small footprint
- Low energy consumption

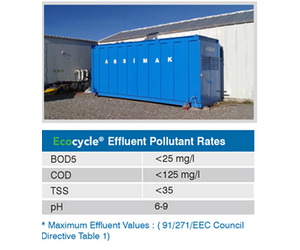

- Discharge quality to environmental standards
- Fully automated

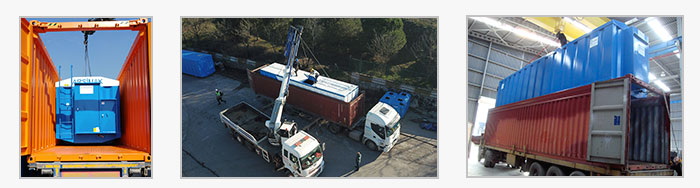

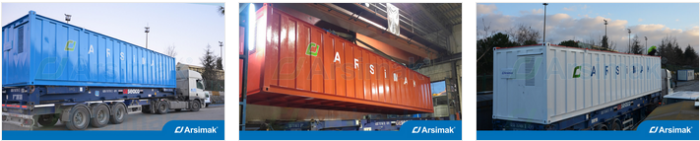

Arsimak designs and manufactures the Ecocycle® units in suitable sizes when it will reach by ship transportation. Ecocycle® can be transported 20ft./40ft./40ft.HC Open Top containers.
Products and components are sourced from reputable suppliers and OEMs locally and internationally, providing you with the best quality possible.

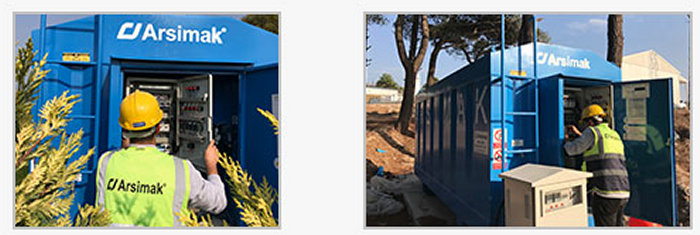

- Arsimak provides a wide range of after-sale support and services to help our customers make the most of their assets.
