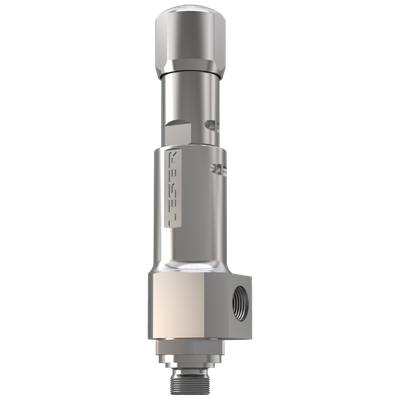

Leser - Model Type 437 -Compact Performance for Safety Valves
Safety valves for protection of small capacities. Matching selection of threaded and flanged connections with a delivery time of 2 weeks.
Most popular related searches
pressure relief valve
relief valve
pipe system
safety performance
pressure pipe system
metallic gasket
gaskets
pressure pipe
industrial gas
industrial safety
- Chemistry
- Oil & Gas
- Petrochemical
- Energy
- Technical gases
- LNG & LPG
- Shipbuilding
- Other industries
The optimal solution for:
- Compressors and pumps
- Technical gases and CO2 plants
- LPG/LNG storage tanks, transporters (ship, truck, etc.)
- Pressure vessels and piping systems carrying vapors, gases and fluids
- Refrigeration and oxygen applications
- Thermal expansion
- Set pressure(according to ASME): 0.1 - 365 bar | 1.5 - 5,294 psig
- Set pressure(according to CE): 0.1 - 365 bar | 1.5 - 5,294 psig
- Temperature(according to ASME): -270 to 280 °C | -454 to 536 °F
- Temperature(according to CE): -268 to 280 °C | -450 to 536 °F
- Capacity: B+ to C
- Connections DIN EN 1092: G/R: NPS 3/8 to NPS 1 | DN 15 - DN 25
- Connections ASME B16.5: NPT: NPS 1/2 to NPS 1 | NPS 1/2 to NPS 1
- Flange class Inlet DIN EN 1092: PN 40 - PN 400
- Flange class Inlet ASME B16.5: Class 150 - Class 2500
- Body material: 1.4104, 1.4404 | SA 479 430, SA 479 316L
- Narrowest flow diameter d0: 6 - 10 mm | 0.236 - 0.394 in
- Narrowest flow area A0: 28.3 - 78.5 mm² | 0.044 - 0.122 in²
- Seat gasket: Metallic
