BONOMI - Model CP -Compact Power Electric Actuator

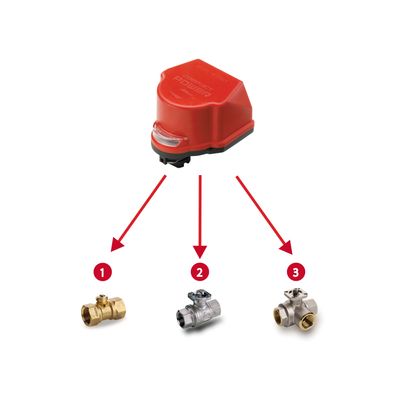

Compact package to fit in restricted spaces. Torque output up to 5 Nm (44 in-lb). Working temperature -20°C (-4°F) to +80°C (+180°F). Protection class IP65 comparable to NEMA 4X. Micro-switches for open-close signals. Micro-switches can pass up to 1A. Reversing motor. Direct mount on valve for perfect shaft alignment. Positive orientation between ball valve and actuator. Actuator easily removable for manual operating by screwdriver. Visual position indicator. Corrosion resistant plastic housing. Actuator has successfully passed 100.000 cycle life tests. Duty cycle 60%.
