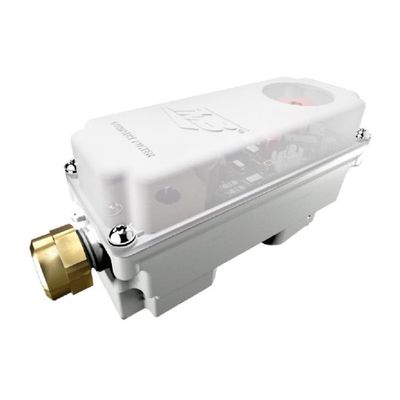

BONOMI - Model CP8 -Compact Power Electric Actuator
The CP series Electric actuator provide an output torque of 8 Nm and it is available in AC and DC voltage. Compact package to fit in restricted spaces. The CP series has an ISO 5211 mounting interface for direct assembly.
Most popular related searches
- Torque output up to 8 Nm (71 in-lb)
- Suitable for actuatable valves (RuB valves up to 1 ¼” size; only for s.64 LT and s.65)
- Standard power cable lenght: 0,8 m (31”)
- Control Type: 2P (ON-OFF) or 3P (INTERMEDIATE POSITION)
- 2 Micro-switches for open-close signals:
- - Standard: motor-voltage switches
- - Optional: free-auxiliary switches
- Micro-switches can pass up to 1A
- Bidirectional motor
- DC brushless motor
- Over 100.000 cycle life tests made
- Duty cycle 60%
- Direct mount on valve for perfect shaft alignment
- Positive orientation between ball valve and actuator
- Actuator easily removable for manual operating by screwdriver (s.31)
- Visual position indicator
- Corrosion resistant PC plastic housing
- The gearbox structure is made of steel
