Felix - Model FT8710 -Compact Pressure/vacuum Chamber

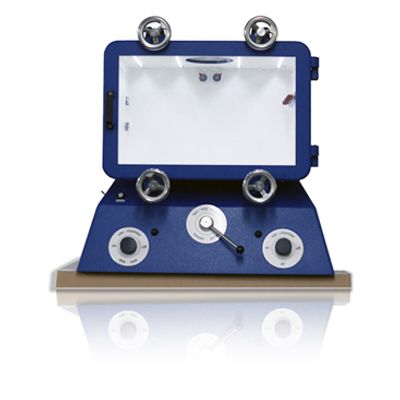

The Compact Pressure/vacuum Chamber FT8710 is used for testing aneroids, barotransmitters, barographs and a mercury barometer (with hood). The test chamber made of a rugged steel construction, upper flange covered by an aluminum plate (or hood type FT8711) and sealed by means of an O-ring. The chamber door is a 4 hand wheels, and its inspection pane is made of 30 mm acrylic glass. On the right there are electrical ducts and on the left there are 2 air inlets NW 10 for connection of Hg-test barometer or other external units. Operating valves are situated at the front.
