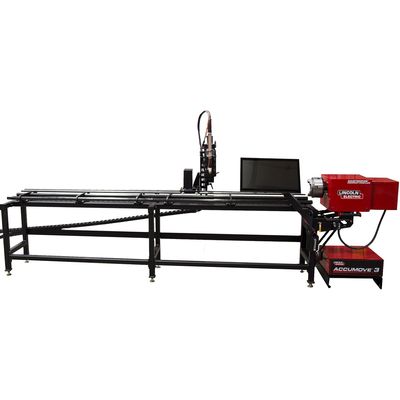

Lincoln Electric MasterPipe - Compact Profiler - CNC Plasma Pipe Cutting Machine

SHARE

The MasterPipe Compact Profiler, developed by Lincoln Electric, serves as an economical CNC pipe cutting solution engineered to meet the needs of small to medium-sized fabrication shops. This compact machine supports pipe diameters ranging from 2 to 8 inches and can be expanded to handle pipes as small as 1 inch in diameter with additional accessories. Key features include a robust gear train, a linear guidance system, and a variable-angle torch arm capable of cutting at bevel angles from 0 to 45 degrees. The machine boasts a 200 ipm cut speed and integrates Lincoln Electric’s ACCUMOVE motion control technology, complemented by the user-friendly Visual Machine Designer interface. With its ability to reduce cycle times through efficient material loading and precision profiling, the MasterPipe is ideal for industries like roll cage manufacturing and handrail production. Additionally, its software capabilities, such as PypeServer, allow for accurate job planning and execution, making the machine a vital asset for enhancing pipe profiling productivity.

Most popular related searches
pipe profiling
rack and pinion
profiling system
piping design
planetary gearing
stainless steel pipe
fume extraction
plasma cutting machine
pipe handling
padding machine

An Economical CNC Pipe Cutting Machine - Built to Last - Ideal for Small Diameter Pipe Cutting in the Construction and Mechanical Contractor Environments

The MASTERPIPE®  Compact Profiler by Lincoln Electric® is an economical CNC pipe cutting solution that comes in a compact footprint. It can handle pipes with outside diameters between 2 and 8 inches, with an optional accessory that expands the capacity to hold one inch O.D. pipe. This machine is ideal for roll cage fabrication shops, handrail and fencing manufacturers, and many other small-to-medium-sized fabrication shops that are looking to increase the efficiency of profiling and cutting their pipes and tubes. This two-axis CNC pipe cutting machine has a footprint of only two feet wide and can rapidly profile aluminum, stainless steel, and mild steel pipes with ease.

Features like a floating 3-jaw chuck and a maximum cut speed of 200 ipm can reduce cycle times in both material loading and plasma torch pipe profiling. Five-foot expansions grow the machine to accommodate pipes and tubes up to 24-feet long.

User Friendly Pipe Profiling Technology

The powerful combination of Lincoln Electric’s ACCUMOVE motion control technology and the user-friendly interface of Visual Machine Designer (VMD) will provide effective and easy-to-use CNC pipe profiling technology to all users. Shops with multiple operators will find that the highly intuitive software is easy to teach, yet powerful enough to handle your most demanding cuts. Our proprietary WinMPM pipe design software is embedded on the machine’s computer and can be used to program pipe profiles from the pre-loaded library.

The MASTERPIPE Compact Profiler pairs a powerful gear train with a linear guidance system to ensure fluid motion. It also uses a variable-angle torch arm that enables the machine to cut at bevel angles between 0 and 45°. This feature is ideal for shops that need to weld prep their pipes. The standard Arc Voltage Height Control (AVHC) reads the arc voltage throughout the cut to compensate for pipes and tubes that are out of round.

Sample Voltage - For Accurate Cuts, Every Time

This can make a big difference when cutting imperfect pipes. Users can activate the “Sample Voltage” feature with the press of a single button on the touch-friendly VMD interface. This feature reads the arc voltage at the pre-programmed cut height for the first ½” of the cut and assigns that highly accurate reading for the duration of the cut. This standardizes the varying arc voltage readings that become skewed from a multitude of factors that are unique to every shop.

Each feature on this machine has been engineered to increase efficiency, standardize cut quality, and expand the capabilities of your business. Please give one of our CNC pipe profiling professionals a call today! They’ll be happy to talk with you about your applications and how the machine can improve your processes. Call us today at 775-673-2200



  • Input Power : 120V/1Ph/60Hz (machine)
  • 200-600V/1Ph-3Ph/50-60Hz (plasma)
  • Traverse Speed : 200 ipm (5.08m/min max)
  • Pipe Capacity :
  • Production capacity: 1-8in (2.5-20.3cm)
  • 1 inch to 2 inch OD pipe cutting requires an
  • additional pipe support accessory.
  • Weight Capacity : Maximum total weight: 1,000 lbs (453.6 kg)
  • Maximum weight per foot: 100 lbs
  • Travel - Longitudinal : 24ft (7.32m)
  • Maximum Cutting Speed : 200 ipm - limited by cutting process (5.08 m/min)
  • Bevel Angle : 0-45° manual bevel
  • Pipe Rotation Drive : Precision planetary gear box and belt drive<
  • Linear Motion : Precision rack and pinion
  • Cutting Process : Plasma
  • Temperature (operating) : 40-100°F (1-38° C)
  • Pierce Capacity : FlexCut 80: 0.75 in.
  • Fume Extraction : Custom quotes available upon request
  • Straight
  • Saddle
  • Multi-Miters
  • Tee
  • Lateral
  • Multi-saddles
  • Gusset slots
  • Double miter
  • Elbow support
  • Pipe to cone
  • Reinforcing pad
  • Bumpers
  • Overlaps
