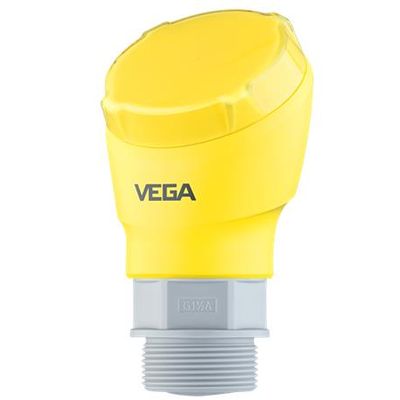

VEGAPULS - Model 21 -Compact Radar Sensor for Continuous Level Measurement
For standard measuring tasks, plastic housing IP66/IP67, Type 4X. Application area: 4 ... 20 mA/HART output, measuring range up to 15 m, accuracy ±2 mm, Ex approval. VEGAPULS 21 is the ideal sensor for non-contact level measurement of liquids and bulk solids in simple applications. It is particularly suitable for use in water treatment, storage tanks with acids, lyes and additives in all industrial areas, or for measuring levels in plastic tanks from the outside through the tank wall. In bulk solids the sensors are used in small bulk solids silos or open containers.
- Exact measurement results independent of medium properties and process conditions
- Maintenance-free operation due to non-contact 80 GHz radar technology
- High accuracy and reliability

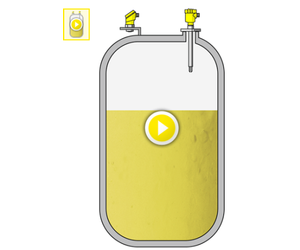

Level measurement in the plastic tank
To the application

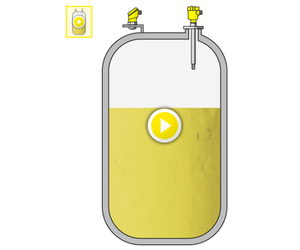

Level measurement and point level detection in chemical tanks
To the application

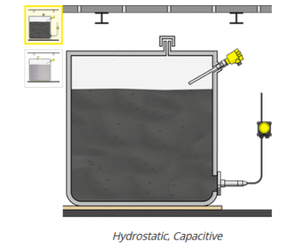

Level measurement and point level detection in the chemical tank
To the application
- Measuring range - Distance: 15 m [Meter - Foot]
- Process temperature: -40 ... 80 °C [°C - °F]
- Process pressure: -1 ... 3 bar [Bar - kPa - psi]
- Accuracy: ± 2 mm
- Frequency: 80 GHz
- Beam angle: 8°
- Materials, wetted parts: PVDF
- Threaded connection: G1½, 1½ NPT, R1½
- Seal material; FKM
- Housing material: Plastic
- Protection rating: IP66/IP67, Type 4X
- Output: 4 … 20 mA/HART
- Ambient temperature: -40 ... 70 °C
- ATEX / Europe
- EAC (GOST) / Russia
- IEC / worldwide
- NEPSI / China
- INMETRO / Brazil
- CCOE / India
- KTL Korea
- CSA / USA and Canada
- FM / USA and Candada
- TIIS / Japan
- UKEX
- FDA
- Drinking water
- EG1935/2004
- ABS
- BV
- CCS
- DNV
- GL
- LR
- NK
- RINA
- WHG
- VLAREM II
Display & adjustment
Adjustment
- PC, PACTware and DTM
- Smartphone / Tablet / PC via Bluetooth
