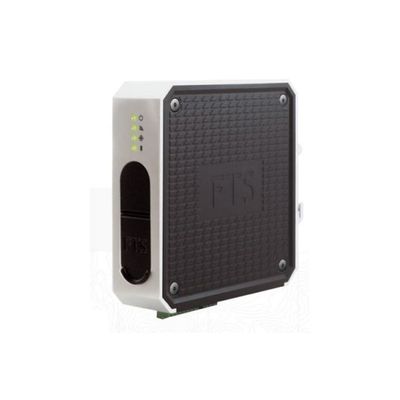

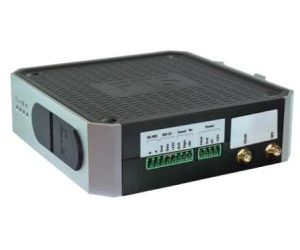

FTS - Model LT1- Goes -Compact, Rugged and Affordable Telemetry
The ideal logging transceiver for managing hydrology and meteorology environmental parameters. Configure, collect, store, and transmit from 4 SDI-12 sensors and rain gauge counter. Built-in, internationally adopted FTS CS2 GOES transmitter. Conformal coating protects from moisture. Local storage ensures data integrity.
Most popular related searches
rain gauging
rain gauge
telemetry
GPS antenna
conformal coating system
environmental parameter
SDI sensor
rain sensor
hydrologic management
protective coating
- Dimensions: 135mm x 135mm x40mm (5.3” x5.3” x 1.6”)
- Weight: 682 g (1.50 lb)
- Operating Temperature Range: -40°C to +70°C (-40°F to +158°F)
- Supply Voltage: +10.8V to 16V
- Current Consumption: 10mA (idle) @ +13.5Vdc
- 2.6A (max) @ +13.5Vdc
- Humidity Range: 0-95% RH
- Local Control: Bluetooth Low Energy (BLE)
- Local I/O: Four (4) SDI-12
- One (1) Rain gauge counter
- One (1) NMEA
- User Accessible SD Card: Card included for up to 2 years of data storage
- Certifications: CE,FCC,IC
- Satellite Telemetry: Goes/Eumetsat
- Environmental Protection: IP66 (with enclosure)
- FTS GOES CS2 Transmitter
- 4GB SD Card
- SMA to N Adapter
Options:
- GOES Antenna
- GPS Antenna
- DIN Rail
