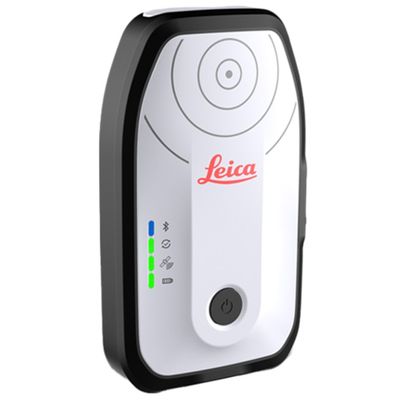

Leica Zeno - Model FLX100 plus -Compact, Rugged and Lightweight Smart Antenna
Compact, rugged and lightweight, the Leica Zeno FLX100 plus is your dependable data collection solution. Achieve up to 2cm accuracy with this easy to use, compact, and lightweight GPS rover. Capture spatial data in a simple and flexible way using the setup that fits your workflow, whether it be on a survey pole for high accuracy data or with the universal handheld tray to build your own handheld GNSS. The FLX100 plus can be paired with your own iOS, Android or Windows smartphone or tablet providing freedom of choice to work the way you want. For the ultimate experience in professional data capture, use the FLX100 plus with Leica Zeno Mobile One or pair it with Leica Zeno Connect to enable high accuracy positioning in other data collection apps on various operating systems.
FLX100 plus
- Leica Zeno FLX100 plus Smart Antenna; Includes 2 year warranty
- Power adapter
- Type-C charging cable
- USB A to USB C cable
- Arm/Belt pouch
FLX100 plus Pole Kit
Same as FXL100 plus, plus:
- Power adapter, USB-C charging cable, USB-c/USB-A cable, and Arm/Belt pouch for FLX100 plus.
- 5/8 pole mount to attach FLX100 plus to Leica GNSS pole.
- GLS30, GPS telescopic carbon-fiber pole with circular bubble and snap-locks at 2 meters.
- 1 Year Leica Zeno FLX100 plus Smart Antenna Basic CCP (1 Yr tech support)
Same as FXL100 plus, plus:
- Power adapter, USB-C charging cable, USB-c/USB-A cable, and Arm/Belt pouch for FLX100 plus.
- Universal Handheld Tray for Leica Zeno FLX100 plus Smart Antenna. For tablet usage, add Handstrap tether for 8"-12.9" tablets.
- 1 Year Leica Zeno FLX100 plus Smart Antenna Basic CCP (1 Yr tech support)
GNSS TECHNOLOGY
- Horizontal real-time accuracy: RTK (Multi-frequency): 2cm + 1ppm*
- Vertical real-time accuracy: RTK (Multi-frequency): 3cm + 1ppm*
- Post-processing accuracy static mode: Horizontal 2cm + 1ppm*
- Vertical 3cm + 1ppm*
- Satellite signal tracking:
- GPS (L1 C/A, L2C)
- Glonass (L1OF, L2OF)
- BeiDou (B1l, B2l)
- Galileo (E1B/C, E5b)
- QZSS (L1C/A, L2C)
- SBAS: enabled through future firmware update
- Number of channels: 184 channels
- Update rate: up to 10 Hz (0.10 sec)
- Supported operating systems: Android | Windows
- Real-time protocols: RTCM 3.0, RTCM 3.1, RTCM 3.2, RTCM 3.3, RTCM MSM
- GNSS initialization:
- Cold start: 24s
- Reaquisition: 2s
- User interface: On/Off key status indicator (LED): satellite tracking, corrections, Bluetooth® communication and battery power
- Communication port: Bluetooth® LE 4.2
POWER MANAGEMENT
- Battery: Internal (3.8 V / 6120 mAh)
- Battery charging time: 4 hours to full charge
- Power: DC 5V/2A
- Operating time: >20 hours
PHYSICAL SPECIFICATIONS
- Weight and dimensions: 313g, 136 mm X 78 mm x 30.5 mm
- Proof against water, sand and dust: IP67
- Operating/storage temperature range:
- Operating: -40°C to +65°C
- Storage: -40°C to +80°C
- Humidity: Rarely and slightly condensing, ISO 9022-12-04 (+65°C, 92%, 62h)
- Drop: 1.2m
- Vibration: Withstands strong vibration , ISO 9022-36-05 (10-55 Hz / ±0.15 mm / 5 cycles)
FLX100 plus (Device only) - Article number: 958981
