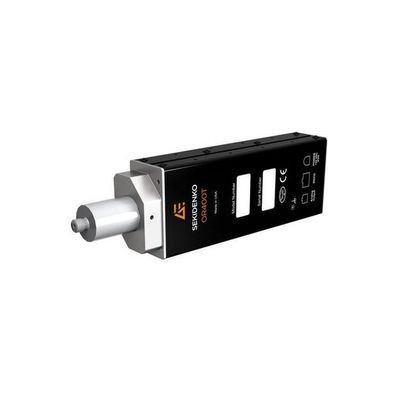

Advanced Energy - Model Sekidenko OR400T -Compact, Single-Channel Optical Fiber Temperature Pyrometer
The Sekidenko OR400T delivers accurate, non-contact temperature and emissivity measurements in a compact, modular platform. Configurable wavelength based on material type and required temperature range. Remote lensed optical sensors or sapphire light pipes for in-situ measurement. Both analog and digital communications with optional Fieldbus protocols for closed-loop control.
The Sekidenko OR400T is a single-channel, non-contact optical fiber temperature pyrometer that measures infrared energy being emitted from an object and converts it into usable temperature data (degrees °F or °C). The Sekidenko OR400T can be configured in a variety of measurement wavelengths based on target materials, process temperature ranges, and working distances from 3.9 in (100 mm) to 118.1 in (3000 mm). Available temperature ranges are: 122°F (50°C) to 2912°F (1600°C).
- Improves temperature-measurement accuracy for critical processes
- Enhances repeatability and minimizes variation
- Increases productivity, yield, and throughput
- Increases stability and reliability across multiple chambers and substrate materials
- Customizes to meet unique functional and mechanical requirements
- In-situ, non-contact temperature measurement employing lensed optical sensors or sapphire light pipe sensors
- Industry-leading temperature and read rates
- Highly flexible, module-based platform architecture
- Full I/O and external trigger/synchronization suite
- Multi-channel capability and read rates up to 2 kHz
Channel Configuration
Single-channel temperature measurement capability with selectable/fixed emissivity
Temperature Range(s)
50 to 3500°C
Filter Range
600 to 1600 nm
Read Rate
Up to 20 Hz temperature read rate
Accuracy
±1.5°C
