Advanced Energy - Model WaveCapture FBG Analyzer Series -Compact Spectral Analyzer System

Precise, Reliable, and Compact Spectral Analyzer for FBG Sensing

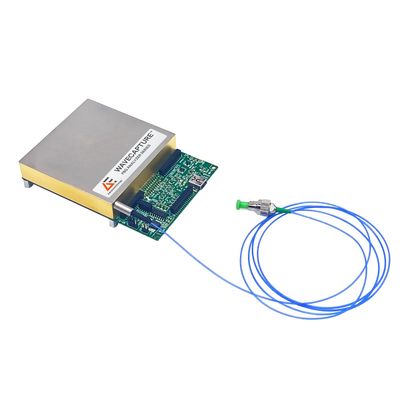

Advanced Energy`s WaveCapture Fiber Bragg Grating Analyzer (FBGA) is an integrated spectral analyzer that serves as the heart of precise, fast, and reliable FBG sensing systems.

• High reliability with no moving parts
• Excellent wavelength repeatability, and resolution
• Ultra-fast response time (up to 5 kHz)
• Compact optical design
• Rugged design for field applications
• USB, Ethernet, or RS-232 interface

• Minimize FBG sensor errors and drift with the high-performance analyzer
• Leverage the high-speed measurements in a wide range of applications
• Use in harsh environments with no maintenance or recalibration required
• Enables portable operation with the compact FBG interrogator design

• Compact, card-mountable design
• Excellent wavelength repeatability and resolution
• Ultra-fast response time (up to 5 kHz) with USB 2.0 or Ethernet
• Hermetically sealed
• Stable over wide ambient temperature and humidity ranges
• Proven in the field with thousands of units shipped

• Wavelength Ranges
• 40 nm Model: 1525 to 1565 nm
• 80 nm Model: 1510 to 1590 nm
• Wavelength Repeatability: ±5 pm
• Frequency Response Time
• USB Option: ~5000 Hz/5 Hz
• Ethernet Option: ~5000 Hz
• Interface
• FBG Analyzer - USB 2.0 / RS232: USB 2.0 / RS232
• FBG Analyzer - Ethernet: Ethernet IEEE 802.3
• Size
• USB 2.0 / RS232: 96 x 68 x 15.8 mm3 (3.78 x 2.68 x 0.62 in3)
• Ethernet: 130 x 75 x 25 mm3  (5.12 x 2.95 x 0.98 in3)
• Operating Temperature: -5 to +75°C (23 to 167°F)
