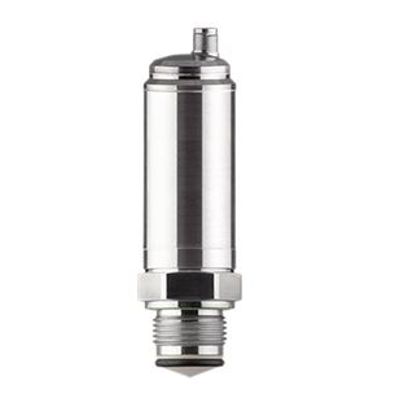

BinMaster - Model CNCR-400.SS -Compact Stainless Steel Radar
This model of the CNCR-400 features an all-metal housing which is ideal if no local display or status indication is required. Outputs are easily integrated into a control system using an IO-Link. It measures up to 49 ft. (15 m) and is designed for level measurement in hygienic processes in the food, beverage, and pharmaceutical industries.
The CNCR-400 80 GHz radar level sensor is a non-contact measurement device for process level monitoring. This compact sensor, measuring just 6 inches in length and 1.5 inches in diameter, is ideal for automated inventory monitoring in compact storage tanks, mixers, or vessels with agitators. It excels in sanitary processing environments and delivers precise readings even in challenging conditions such as turbulence, condensation, and buildup.
The CNCR-400, a Bluetooth-enabled radar level sensor, is set up using the BinMaster Sensor App. But what truly sets it apart is its compatibility with the BinCloud® inventory management system. This feature enables real-time monitoring and automated alerts across multiple sites, accessible from a phone, tablet, or PC, giving you a sense of security and control over your inventory.
Compact, hygienic 80 GHz radar level sensor
Measure solids & liquids in food, beverage, or pharma
The CNCR-400 measures vessel heights up to 49 feet/15 meters in sanitary processing operations. This compact sensor is only about 6” long and 1.5” in diameter, measures within 0.2”/5mm, and updates in seconds.
Housing versions
- All metal, stainless steel, no indicator
- Programmable ring light indicator
- Digital display with ring light indicator
Use the CNCR-400 in vessels with mixers or agitators. It measures accurately in turbulence, condensation, or vessel wall buildup.
Designed for sanitary applications
- Standard housing material is 316L stainless steel
- Housings offer protection classes IP66/IP67, up to IP69
- Wetted parts are PTFE and 316L stainless steel
- Process seal is chemical and tear-resistant FKM or EPDM
Features to like about the CNCR-400
- Food & Pharma Friendly: 3A, FDA, and EHEDG approvals
Easy Setup: Using a Bluetooth application on a phone - Simple Integration: Connects easily to a control system using an IO-Link
- Cloud Inventory: Phone or PC level monitoring using BinCloud®
- Wireless Options: Use gateways and transceivers for simple installation
- Reliability: Performs consistently under rigorous process conditions
- Maintenance-Free: Operates at 80 GHz without maintenance hassles
Inventory Management
Ensure adequate supply for production, prevent material shortages.
Manage inventory while in the plant, while traveling, or away from the office.
Vendor Managed Inventory
Engage suppliers in replenishing the supply chain to optimize purchasing.
Monitor conveyed or truck loaded materials in large storage structures.
Manage pile height, size, and volume of bulk materials.
- SKU: CNCR-400.SS
- Means of Measurement: Radar
- Measurement Type: Continuous Level
- Medium: Solids, Liquids
- Voltage : 12-35 VDC
- Outputs: 4-20 mA, IO-Link, NPN/PNP
- Ambient Temperature: -40°F to +158°F (-40° to +70°C)
- Process Temperature: Up to +266°F (130°C)
- Approvals: Contact factory for latest updates.
- Enclosure Type: IP 66, IP 67, IP 69
- Enclosure Material: Plastic, Stainless Steel
- Mounting: .75" NPT, 1" NPT
- Range: 49 ft. (15 M)
