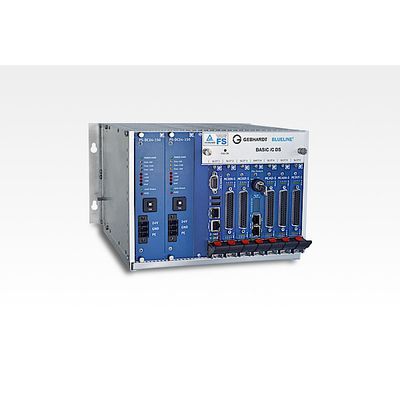

GA BlueLine² - Model Basic /C DS -Compact System for Control and Safety
Compact safety: high performancy in tight spaces. GA BlueLine² BASIC /C is a powerful compact system for control and safety applications. It can be installed on the rear mounting plate to save space. The system version "/C DS" allows connection of field signals using standardized cables with D-Sub connectors. It accommodates up to six cards (I/O including CPU).
Most popular related searches
- Compact rack for up to 6 cards (I/O cards including CPU)
- FS1 data bus with integrated Ethernet
- Assembly: on mounting plate
- Power supply: single or redundant 24VDC power supplies (GA-PS-DC24-150), max. 150W, optional AC power supply, front installation
- Connectors: primarily I/O cards with standardized cables, via D-Sub connector
- Ventilation: built-in active fans on top of the cards, replaceable, with fan monitoring; replaceable dirt filter under the rack
- Operating temperature range: 0° ... +60°C (+32° ... 140°F)
- Dimensions: 191 x 300 x 290 mm (H x W x D)
- Standards: IEC 61508, EN ISO 13849, IEC 62061, IEC 61511, IEC 61131, EN 50178
