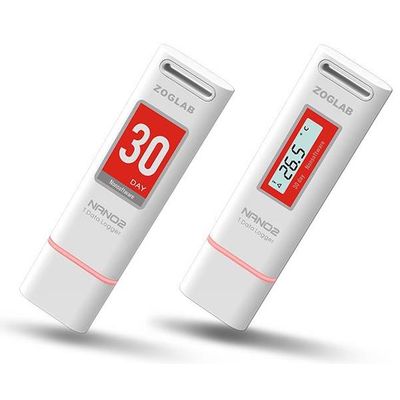

ZOGLAB - Model NANO2-T -Compact Temperature Logger

FromZOGLAB Microsystem Co., Ltd

SHARE

Super compact size designed for cold chain; connect with PC via the integrated USB port directly. Auto PDF report once connected with PC without software operation. HD LCD shift displays the real-time T & RH data, history max & min value and over-limit alarm. Suitable for cold chain transportation with the Certification of Safe Air Transport. Super low power consumption, reusable application, huge memory capacity.

Most popular related searches

compact temperature logger

environmental instrument

flame retardant

temperature logger

environmental data logger

environmental data

Measuring Data

Sensor model: Digital sensor/NTC
T Measuring range: -30?~70?,-40?~85?(No Display)
T Measuring accuracy: ±0.3?(23?±2?),±0.5?(FS)
T Resolution: 0.1?/0.2?

General

Memory size: 60,000 units / 120,000 units; customization is supported
Alarm: Highlight LED indicator with dual colors
Sampling interval: 10s
Logging interval: 2s~24hrs
Start with delay time: 1s~120s
Start mode: Immediate start / Time-lapse start / Timing start / Magnetic start
End mode: Full / Timing end / Magnetic end
Timing start/end: Random start/End with format YYMMDD HHMMSS
Interface: USB2.0
Battery: 3.6V lithium battery (Rechargeable)
Battery lifetime: 45~150days (Working time)
Recharge times: ≥300 cycles
IP Class: IP64
Storage temperature: -50?~90?
Software: Quick Log
Dimensions: 79×22×7.4mm
Weight: 12g
LCD display area: 21×5mm
Housing: ABS+PC, flame-retardant, toxicity and halogen free
Certificates: CE, FCC, C-TICK, VCCI,CNAS Certification of Safe Air Transport
