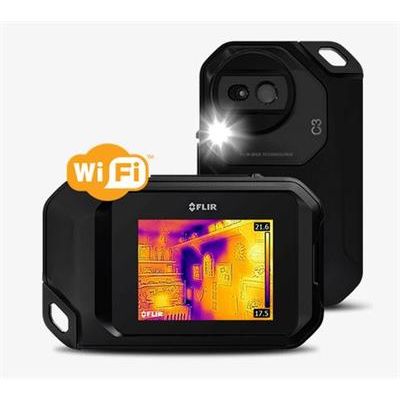

FLIR - Model C3 -Compact Thermal Camera with Wi-Fi
The FLIR C3 is designed to be your go-to tool for building inspections, facilities maintenance, HVAC, or electrical repair. This slim camera fits easily in your pocket so you can take it anywhere. Its integrated touch-screen is a snap to learn, so you can quickly get to the job of finding hidden problems, documenting repairs, and sharing images over Wi-Fi.
Most popular related searches
thermal camera
compact thermal camera
thermal imaging
infrared camera
IR sensor
facility inspection
HVAC
FTIR
microsensor
FLIR camera
- OVERVIEW
- Dimensions : 125 x 80 x 24 mm (4.9 x 3.1 x 0.94 in)
- Packaging Size : 175 x 110 x 105 mm (6.9 x 4.3 x 4.1 in.)
- Spectral Range : 7.5 - 14.0 µm
- IR Sensor : 80 x 60
- Standard : 802.11 b/g/n
- CONNECTIONS & COMMUNICATIONS
- Storage Media : Internal memory, at least 500 sets of images
- USB 2.0 : USB Micro-B connector type: data transfer to and from PC
- WiFi : Peer-to-peer (ad hoc) or infrastructure (network)
- ENVIRONMENTAL
- Emissivity Correction : Yes; matte/semi-matte/semi-glossy + custom value
- Operating Temperature Range : –10°C to 50°C (14°F to 122°F)
- Storage Temperature Range : –40°C to 70°C (-40°F to 158°F)
- IMAGING & OPTICAL
- Auto orientation : Yes
- Color palettes : Iron, Rainbow, Rainbow HC, Gray
- Digital Camera : 640 x 480 pixel
- Digital Camera Focus : Fixed focus
- Field of view (FOV) : 41°x 31°
- Image Frequency : 9 Hz
- Image Modes : Thermal, visual, MSX®, Picture-in-Picture
- Minimum Focus Distance : Thermal: 0.15 m (0.49 ft) MSX®: 1 m (3.3 ft)
- Non-radiometric IR video streaming : Yes
- 3 inch Display (color) : 320 x 240 pixels
- Image Gallery : Yes
- MSX : Adds visual details to full resolution thermal image
- Thermal Image : Yes
- Visual Image : Yes
- Visual Video Streaming : Yes
- MEASUREMENT & ANALYSIS
- Accuracy : ±2°C (±3.6°F) or ±2%, whichever is greater, at 25°C (77°F) nominal
- Area : Box with max. or min.
- Frequency Range : 2400-2480 MHz 5150-5260 MHz
- Measurement Corrections : Emissivity, Reflected apparent temperature
- Object Temperature Range : -10°C to 150°C (14°F to 302°F)
- Spot Meter : On/Off
- Thermal Sensitivity/NETD : < 0.10°C
- POWER
- Battery : 3.7 V Rechargeable Li-ion polymer battery
- Battery operating time : 2 hours
- Charging system : Charged inside camera
- Charging Time : 1.5 hours
- External Power Operation : AC adapter, 90-260 VAC input - 5 V output to camera
- Power Management : Automatic shut-down
- SHIPPING INFORMATION
- Box Contents : Infrared camera, lanyard, pouch, power supply/charger, tripod mount, USB cable, printed documentation
