McPherson - Model 234/302 -Compact Vacuum Ultraviolet Monochromator
FromMcPherson

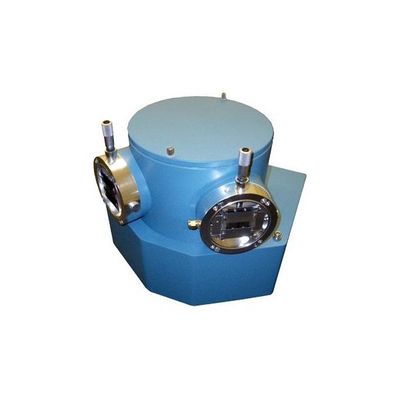

The Model 234/302 is a compact and versatile vacuum ultraviolet monochromator. A selection of aberration-corrected diffraction gratings is available so you can tailor the instrument to your wavelength of interest and application. Connect this instrument directly to your vacuum plasma physics experiment or build an intense UV tunable source. It is available as a scanning monochromator, as a spectrometer, or as a spectrograph with microchannel plate or direct-detection CCD. The Model 234/302 is popular in systems due to its compact design, high throughput and resolution. It is also available with an additional entrance or exit port.
Most popular related searches
- VUV Spectrograph with CCD or MCP
- Works from 30nm VUV
- High throughput, f/4.5
- Optional - Turret, Multiple Ports, UHV
- Optical Design : Aberration Corrected Seya-Namioka
- Angle of Incidence : 32 degrees
- Focal Length : 200 mm
- f/no. : 4.5

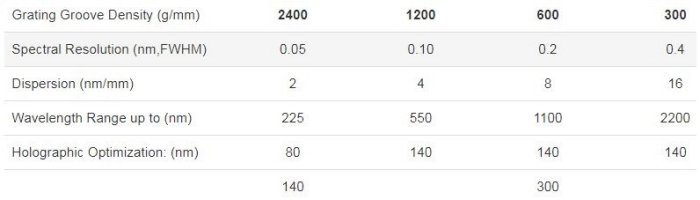

- Wavelength Range : refer to grating of interest for range
- Wavelength Accuracy : +/- 0.10 nm (with 1200 g/mm grating)
- Wavelength Reproducibility : +/- 0.05 nm (with 1200 g/mm grating)
- Grating Size : 40 x 45 mm (single kinematic grating holder, turret optional)
- Slits : Continuously variable micrometer actuated width 0.01 to 3 mm. Settable height.
- Vacuum : High vacuum 10E-6 torr standard, UHV optional
- Focal Plane : 25 mm microchannel plate or direct detection CCD
