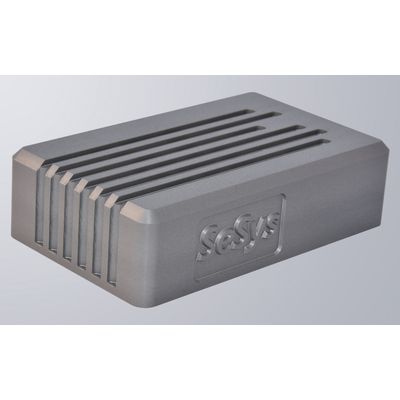

SeSys - Model VS-One -Compact Video Matrix Switch

SHARE

Our compact video matrix switch enables live stream footage from up to 9 cameras directly onto a HDMI display device in minutes. The VS-One provides convenient and easy links between a range of popular camera brands and your TV allowing for up to 9 cameras on screen.

Most popular related searches
security network
CCTV IP camera
CCTV
The VS-One was designed to enable an IP CCTV camera to be linked directly to a display device for easy and convenient viewing. It works with most camera brands meaning that it can be used alongside your existing camera infrastructure.

It is compact with options to power by mains or PoE. Its purpose is to stream the images from a camera, or multiple cameras - up to as many as 9 - directly onto a HDMI monitor with no need for a PC.

It also acts as a video server, converting single channel Mobotix P3 MxPEG to H.264.

SeSys can take care of the initial configuration for you, so once you’re set up, it’s extremely straightforward to use, making viewing your camera live stream a doddle.

Video Matrix direct to a TV View 1, 4 or 9 Mobotix cameras without the need for a PC
Video Server Convert single channel Mobotix MxPEG to H.264

  • Compact size
  • Intuitive web browser interface
  • Multiple users - password protected
  • Inclusive of power supply
The innovative VS-One operates in two modes suitable for industrial and domestic applications.
Video Matrix mode - the VS-One replaces the necessity for an on-site PC or Server and provides a license free solution for hosting up to 9 Digital
IP Cameras on a single display.
Server mode - the VS-One will convert a single channel Mobotix MxPEG to H.264 or RTSP stream.

Technical Specification - VS-ONE

Video

  • Video compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Motion JPEG
  • Input resolutions: User defi ned up to a maximum of 2048 x 1536 pixels
  • Frame rate: H.264; up to 30 fps in all resolutions, Motion JPEG up to 30 fps in all resolutions
  • Video streaming: Multiple RTSP streams

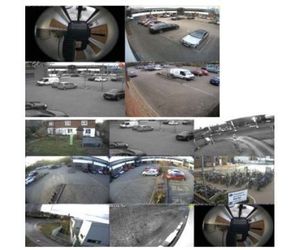

  • Video display: 1, 4 or 9 way matrix mode when video server mode is not selected

Network

  • Security: Password protection network access control
  • Supported Protocols: IPv4, HTTP, DNS, RTSP, TCP, UDP, DHCP
  • Web browser: Matrix/Video server mode and confi guration, system management, user management

General

  • Dimensions: (H) 30 mm x (W) 110 mm x (D) 67 mm
  • Weight: 200 g
  • Casing: Material; Aluminium hard anodised
  • Memory: 2GB RAM
  • Power Supply: Mains plug power supply with international adaptors, 90Vac-264Vac 50-60Hz input, 5VDC 3A Output,
  • Automatic reboot following power loss
  • Power Consumption: Server mode: 1.25A
  • Matrix mode: 1 camera - 1.5A / 4 cameras - 2A / 9 cameras - 2.5A
  • Connectors: RJ45 10/100/1000Mbps Ethernet with Auto MDIX support, HDMI 1.4a with Type A connector,  5.5mm power connector
  • Maximum output resolution: 1920 x 1080 pixels (1080p)
  • Operating conditions: 0°C to +50°C, Humidity 10-85% RH (non-condensing)
  • Included: International power supply, quick installation guide
  • Optional accessories: Vesa TV mount
  • Warranty: 1 Year
