Barone, Inc.
Barone - Model 24M3FP -Compaction Wheel for Excavator
FromBarone, Inc.
Model 24M3FP is suitable for any excavator with a maximum machine weight of 50,000 Ibs. and some heavier rubber-tired loader/backhoes (such as the John Deere 710 series). It replaces the hoe bucket and utilizes existing bucket pins. Padfeet are more effective in sand, gravel, and soils that contain little or no cohesive material.
Most popular related searches

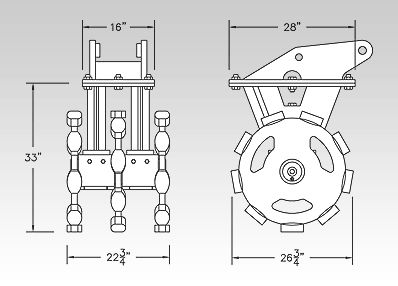

The 24M3FP is constructed of three 23.75" O.D. rims manufactured from 1.25" plate with eight T-1 steel padfeet (1.50" x 3.25" x 5") welded to each rim. It utilizes dual MD-series oil-bath journal bearings between rims.
- Minimum Trench Width: 24"
- Approximate Oil Capacity: 8 quarts
- Approximate Wheel and Bracket Wt: 1,535 lbs.
- Maximum Machine Wt: 50,000 Ibs.
