Barone - Model 24M3FS -Compaction Wheel for Excavator
FromBarone, Inc.
Model 24M3FS is suitable for any excavator with a maximum machine weight of 50,000 Ibs. and some heavier rubber-tired loader/backhoes. (such as the John Deere 710 series). It replaces the hoe bucket and utilizes existing bucket pins. Sheepfeet are more aggressive for breaking up lumps and compacting soils that contain cohesive material.
Most popular related searches

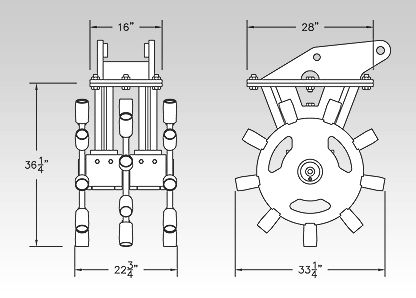

The 24M3FS is constructed of three 23.75" O.D. rims manufactured from 1.25" plate with nine cast IBS Steel sheepfeet (3.25" dia x 5.50" long) welded to each rim. It utilizes dual MD-series oil-bath journal bearings between rims.
- Minimum Trench Width: 24"
- Approximate Oil Capacity: 8 quarts
- Approximate Wheel and Bracket Wt: 1,630 lbs.
- Maximum Machine Wt: 50,000 Ibs.
