Barone - Model 6L1FP -Compaction Wheel for Skid Steer Loader

SHARE

Model 6L1FP is suitable for any skid sleer, loader/backhoe, or mini-excavator with a maximum machine weight of 15,000 Ibs. With our MD-series pin-on mounting bracket, this wheel replaces a hoe bucket using the existing pins. Our bucket clamp and hardware allow the wheel to be attached to either a loader bucket or a hoe bucket. This wheel is also available with tool carrier mounting for BobCat or Case skid steers.

Most popular related searches
loader bucket
tool carrier
mini robot excavator
compaction wheel
wheel loader
excavation system

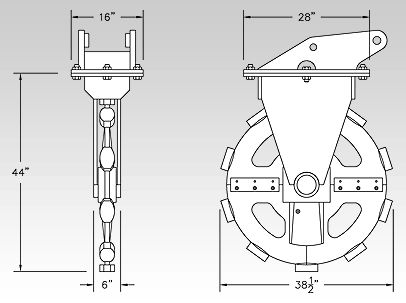

The 6L1FP is constructed of a single 35.5" O.D. rim manufactured from 1" plate with ten T-1 steel padfeet (1.50" x 3.25" x 5") welded to the rim. It utilizes a single LD-series oil-bath journal bearing in the center.

  • Minimum Trench Width:6"
  • Approximate Oil Capacity:1.37 quarts
  • Approximate Wheel and Bracket Wt:850 lbs.
  • Maximum Machine Wt:15,000 Ibs.
