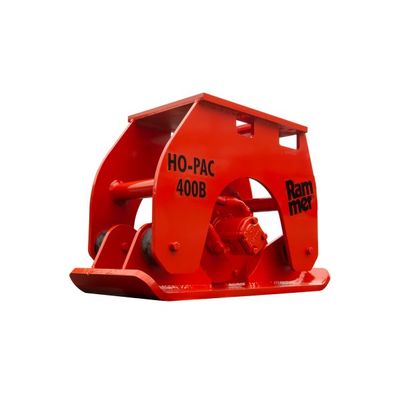

RammerModel Ho-Pac 400B -Compactor Drivers

FromRammer
SHARE

The 500lbs (227kg) Ho-Pac 400B is ideal for trench, slope and excavation compaction. Compatible with carriers in the 3,000 to 12,000  ton range, the attachment is designed for use in mini-excavators, skid-steers, rubber-tired backhoes and trenchers with a backhoe attachment. The Ho-Pac 400B features Four Function Valve that controls flow, pressure, regeneration and oil flow direction, Grease filled sealed bearings providing maintenance free lubrication, and tough coat hoses that prevent cuts and extend wear life. Larger eccentric with mass further away from shaft centerline helps to increase impulse force.

Most popular related searches
  • Trench compaction
  • Slope compaction
  • Pile Driving
  • Waste Material Compaction

  • Minimum working weight, flange mounted  *1 : 500 lb
  • Height : 21 in
  • Carrier weight, optimum : 1.6 - 5.4 t : 3000 - 12000 lb
  • Carrier weight, range  *2 : 1.6 - 5.4 t : 3000 - 12000 lb
  • Impulse force : 4000 lb
  • Operating frequency : 2000 rpm
  • Hydraulic flow options : 6/9/14/18 gal/min
  • Compaction plate dimensions : 13 x 31 in
  • Mounting bracket type : IN1/IN2/XR
