New Aqua - Model D511 -Complete Filtering System
Fromnew aqua GmbH

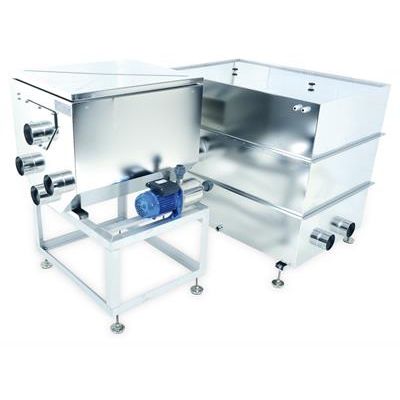

The combination of the Process Filters D511, the Base Frame U511 and the Bio-Chamber BB500 results in a modern, top-class Complete Filtering System! The base frame is suitable for Process Filterss D511 and D510 inclusive of the high-pressure pump. Foot plates can be fitted to the base frame.
Most popular related searches
- Material: stainless steel 1.4301
- Dimensions LxWxH: approx 660 x 840 x 440mm
- Weight: approx 27kg
Bio-Chamber BB500
Article-no.: 214100
The bio-chamber, together with our modified Hel-X, can be used for floating-bed filtration, or as a fixed-bed chamber with Japanese mats. One or two 55 watt TL series UV-C immersion emitters can easily be mounted. Foot plates add to the finishing touch of an outstanding and complete filter unit.
- Material: stainless steel 1.4301
- Dimensions LxWxH: approx 1.300 x 1.060 x 1.030mm
- Inlet: DN200 / 200mm
- Outlet: 2x DN100 / 110mm (pump connections)
- Volume: approx 850l (suitable for 200-300l Hel-X)
- Weight: approx 120kg
