COMPOLYTICS® - Model Macrobot NextGen -Automated Multispectral Image Acquisition System for Advanced Phenomics

SHARE

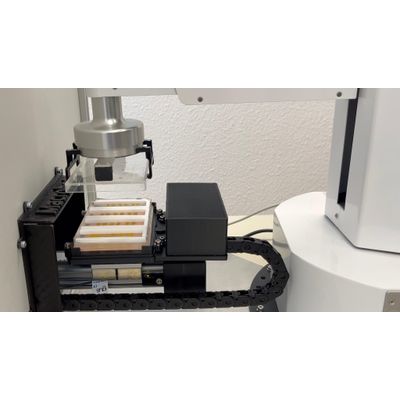

Automated sample handling: Samples, e.g., detached leaves of crop plants, contained in agar plates (standard microplates) are placed in up to 15 stacks of up to 30 plates each (22 with lids). Plate crane (specialised robot arm) automatically picks plate from stack, places it on linear moving table and removes lid for undisturbed scan.

Most popular related searches
multispectral imaging
sample handling
UV-VIS/NIR
autosampling
UV-VIS
microplate
VIS-NIR
microplate standard
microplate well
sample automation

Multispectral image acquisition

  • Each plate is automatically loaded into imaging box; barcode reader scans sample ID.
  • Customisable sequence of multispectral illumination in UV, VIS, and NIR (tailored to application).
  • Synchronised image acquisition using high-resolution digital camera; background-lit scan for improved object segmentation.

Dedicated user interface

  • Allows complete control of all scan parameters, definition of several scan scenarios including light recipes.
  • Live view of high-resolution camera image plus real-time surveillance image from inside the imaging box.
  • Saving the recorded image data on a local hard drive or in the cloud.

Compatible with various image analysis software

  • Customised proprietary or publicly available image analysis software comprising leaf segmentation, lesion recognition and quantitative assessment.
  • Example shown here: BluVision software for the detection of Blumeria graminis developed at IPK Gatersleben (courtesy of Dimitar Douchkov and Stefanie Lück).

Accessories and consumables

  • As a hardware supplier, Compolytics also provides a one-stop solution for essential Macrobot-related accessories and consumables to help you maximise the potential of your Macrobot system, such as compatible four-well microplates, tailored teflon mounting frames, etc.
