Compose It - Industrial Filtration Tank for Water Treatment System
Physical filtration tank adapted for applications of water treatment for drilling water, swimming pool water, community water, industrial water and recreational water. Tanks from 60 to 450 liters; Pipe fittings from DN 32 (1"¼) to DN 65 (2"½). Working pressure 8 bar; hydraulic pressure test: 12 bar; burst pressure> 30 bar Compliant with the European Pressure Equipment Directive 2014/68/EU.
Tanks and complete solutions for the treatment of borehole water, swimming pool water, collective water, industrial water and recreational water.
Modular and adaptable filters.
Filtration head screwed onto the cover or offset.
Exceptional filtration performance. Flow rates up to 50 m3/h.
100% corrosion-free tanks.
Time-saving installation thanks to 2 large, quick-opening tank openings.
Operating pressure up to 8 bar.

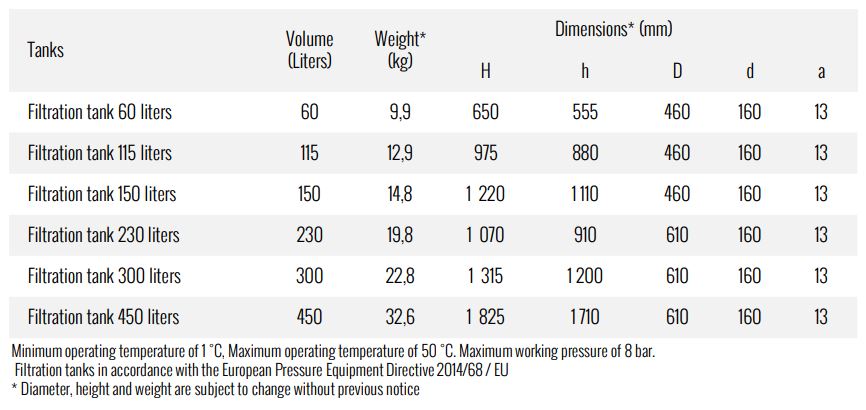

Volumes from 60 to 450 L.
And still all the benefits of Compose It tanks.
Extreme lifetime
Easy to disassemble for a quick access
Customisation of pipe fittings and accessories (Strainers)
Ultra Light tanks
Tank warranty: 10 years
Accessories warranty: 2 years
Extreme lifetime
Tank warranty 10 years. Maintenance free. Patented Compose It ™ technology for an improved mechanical resistance. Composite monolithic structure without any welded part, raw materials selected for their extreme durability (High fatigue resistance to cycling, 100% corrosion free).
Easy to disassemble and to access
Wide openings diameter of 160 mm with upper and lower PVC lids fixed with stainless steel clamp easy to disassemble allowing a quick access inside of the tank.

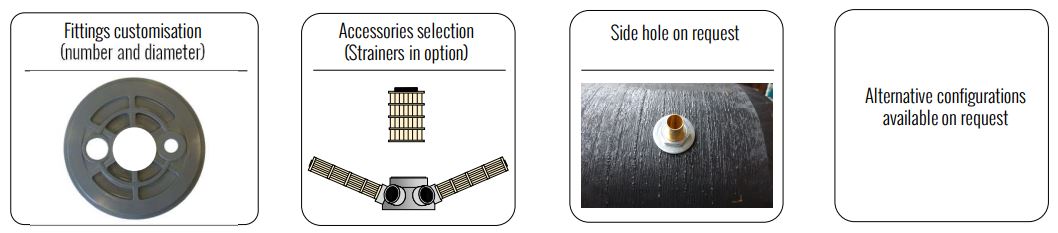

Customisation of pipe fittings
Various pipes fittings are available on the upper and lower PVC openings from DN32 (1"¼) to DN65 (2"½).
Customisation of accessories

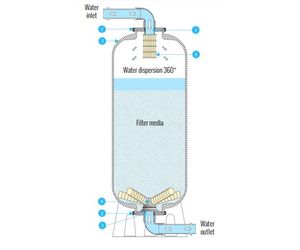

Various strainers models of water dispersion are available (4) for a homogenous 360° water distribution in order to maximise the filtration rate.
Various star strainers models (4) are available to collect the filtrated water.
The strainers (4) and (4) are easily accessible thanks to the removable lids (160 mm diam.)

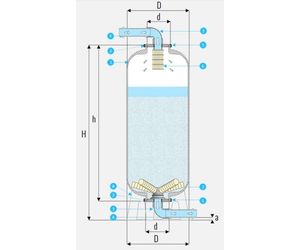

- Tank in recyclable thermoplastic composite materials reinforcedwith glass fibers (monolithic structure with improved mechanical properties) with an extreme lifetime, high fatigue resistance to cycling and 100% corrosion free
- Tank compliant with chemical agents, aggressive and saline watersWide top opening of 160 mm. PVC lid diam. 160 mm with pipe fitting up to DN 65 (2"½)
- PVC pipe fitting up to DN 65 (2"½), elbow or Tee
- Male PVC tube up to DN 65 (2"½)
- Stainless steel clamp fixed with a nut, simple and quick to use
- Upper strainer for water dispersion in the tank, female fitting up to DN 65 (2"½)
- Lower star strainer for filtrated water recovery, female fitting up to DN 65 (2"½)
- Reinforced PVC support
Sustainable Tanks
- No joints, no welds: just a one-piece structure that is insensitive to corrosion.
- Extreme resistance to pressure cycles, even in the most aggressive environments.
- Twice lighter than steel, Compose It tanks are easy to handle and install.
- Thanks to their large opening, the bladder can be replaced in 5 minutes: you fully benefit from the resistance of the tank, for a long time.
- Unlike current composites, the materials we use are designed to be easily recycled.
- A thermoplastic composites recycling industry is blossoming: everything will be ready to welcome Compose It tanks at the end of their (long) life.
- Our objective: production units on a human scale, as close as possible to our customers.
- The proximity and responsiveness of an SME, backed by a worldwide network of experts.
