Cleatech LLC

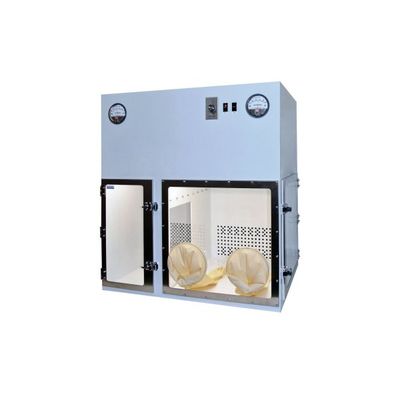

Cleatech - Compounding Aseptic Isolator- 4 Feet
FromCleatech LLC
General Construction: Polypropylene body and transparent AR polycarbonate front window. Overall Dimensions: 52” W x 30” D x 44” H.
Main Chamber Interior: 36.25” W x 28.5” D x 30” H; Antechamber Interior: 14.75” W x 28.5” D x 30” H.
Most popular related searches
compounding aseptic isolator
isolation glovebox
magnehelic gauge
glovebox system
aseptic isolator
ULPA filter
HEPA filter
pressure gauge
sound level monitoring
glovebox
- Glove Ports: 8” diameter ports with stainless steel glove clamps.
- Main Chamber Door Opening: 22” x 22” (located on the right side); Antechamber Door Opening: 11.5” x 22” front access.
- Pressure Gauge: Magnehelic gauges (0 – 0.25” water column) monitors the internal positive pressure of the main chamber and antechamber.
- IV Bar: Stainless steel rod, 0.5” diameter, including S-shaped IV hooks, mounted about 5” from the filter face.
- Test ports: To test or certify the internal pressure and the differential pressure of main and antechamber. The two ports are located on the left upper side of the unit.
- Pre-filters: Washable polyurethane foam filters located on the intake and exhaust.
- Final Filters: HEPA filters are 99.97% efficient at trapping particles as small as 0.3 microns. ULPA filters are 99.999% efficient at trapping particles as small as 0.12 microns.
- Average Airflow Velocity: 90 feet/minutes (fpm) at filter surface; Air Flow: 480 CFM.
- Sound level: 51 dBA, measured no more than 30” from filter face at 90 FPM.
- Lighting: Two internally mounted LED light fixtures.
- Electrical: 110VAC, 50/60Hz or 220VAC, 50 Hz. 3 Amp Maximum, Meets the requirements of the National Electrical Code and applicable local codes.
- Performance: Particle count exceeds ISO Class 5 requirements, Meets IEST recommended practices.
- Shipping Weight; 300 lbs
- Shipping Dimensions; 58 × 36 × 53 in
- Part No.; 2600-2-B
- Configuration; Filtration Open Exhaust
- No. of Glove Ports; 2
- Chamber Volume; Large ~ 18 cu.ft.
- Main Chamber Dimension; 36×28.5×30
- Material; White Polypropylene
- Epoxy powder coated steel stand with caster (including two locking). Stands are available in 30`` and 35`` height with an optional upgrade to leveling mounts.
