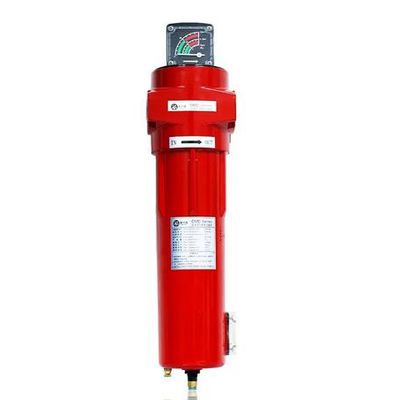

Lingyu - Model Max 16 Bar -Compressed Air Coalescing Filter with Automatic Drain

Lingyu is the manufacturer of top quality compressed air coalescing filter. They can effectively remove particulate, dust, oil vapor, moisture and water from air compressor system. The avialable filteration accuracy is 5 micron, 1 micron and 0.01 micron. In addition, these coalescing filters are with automatic drain. Besides, it has also differential pressure gauge and liquid level mirror. Becuase we are air compressor inline filter factory, the price has advantage. Moreover, we can also customize air line water filter separator.

What is a coalescing filter for air compressor?

It is a kind of high precision filters. Firstly, compressed air passes the pre-filter or primary filter. It can remove many particulates. Then they flow through the coalescing element from the inside out. The liquid flow rate will be greatly reduced. The dispersed tiny droplets combine with each other in the coalescence layer. So they will gather together. Finally become into large liquid particles. These processes are called coalescence. These liquid contains water and oil. Finally, automatic drain will discharge the liquid. Therefore, it realizes the air-liquid separation. That is, it also achieves the compressed air filtration.

• Application gases: compressed air / non-corrosive air;
• Air capacity of coalescing filter for air compressor: 1.0m³/min to 22m³/min;
• Working pressure: Std.7 Bar / Max:16 Bar;
• Pressure loss dnder full load: 0.02MPa to 0.025MPa;
• Working temperature of air line filter: Max 80?;
• Compressed air filtration accuracy: 5 micron, 1 micron and 0.01 micron;
• Coalescing filter element: high quality HV glass fiber filter paper;
• Filter housing material: die-cast aluminium alloy (100% pass pressure test);
• Type: compressed air filter with automatic drain, differential pressure gauge and liquid level mirror;
• Function: dust particulate filtration, oil aerosols filtration and water & moisture removal;
• Filter element lifetime: 8000 hours;
• Outer casing lifetime: at least 10 years;
