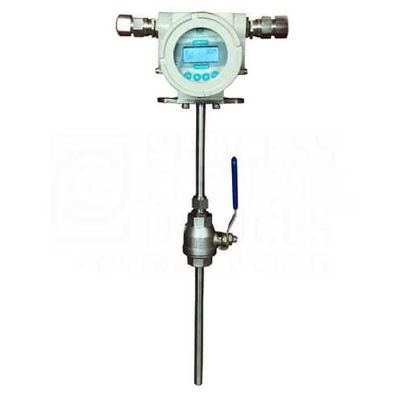

Compressed Air Flow Meter
Thermal Mass Flow Technology for Compressed Air Flow Measurement. The thermal principle operates by observing the cooling effect of a gas flow as it passes over a heated transducer. In compressed air flow meter, the temperature sensor monitors the actual air temperature whilst the heater transducer is maintained a constant differential temperature by caring the required current to the heating sensor from electronic in order to maintain the differential temperature. Greater the flow, greater will be cooling effect and current required to maintain the differential temperature. The current produce to maintain this temperature differential is directly proportional to the mass flow rate. Hence there is no need for additional temperature or pressure compensation in the thermal mass flow meter. This makes thermal mass flow meters as a preferred choice for use in compressed air flow monitoring systems.
Compressed air has a wide range of applications across Industrial segments. Compressed air is considered to be the “fourth utility” after water, natural gas and electricity. When compared by cost per delivered unit of energy compressed air is costly other than three. There are six basic aspects of efficient compressed dry air system total demand, system storage, operational supply, output air quality, on-demand distribution, and overall management. All six elements need to work together for the system to reach its extreme efficiency.
Accurately tracking the use of compressed air is a must. By knowing exact air production or consumption rate using PCD compressed air flow meter we can optimize complete systems, assure stable quality and also reduce energy losses. The technology used for this meter is of thermal dispersion type.
- Calibration report
- Thermal mass flow meter
- User manual
- Cable Glands
- Compression fitting
- Power supply adaptor
- RS485 to USB convert (on demand)
- Inbuilt data logger (on demand)
- Safety cable
- Aluminum rugged case
Programming: By Membrane Key
Power Supply: 24 VDC Isolated, 230 VAC, 110VAC
Out Puts: 4-20mA, 4wire, Pulse,
Communication : RS 485 MODBUS
Accuracy: ± 2% of FSD
Linearity: +/- 0.5 %
Repeatability: 0.5%
