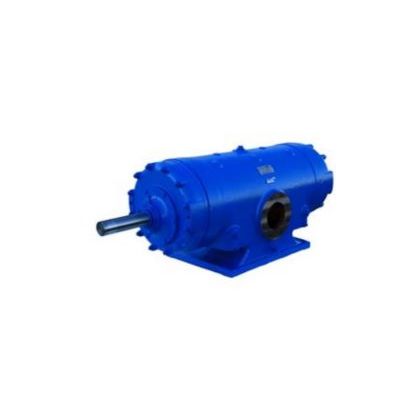

Ro-Flo - Model 4CC -Compressor

Inlet Connection 2`  ANSI Class 150 Flat Face Flange.Outlet Connection 1.5`  ANSI Class 150 Flat Face Flange.Operating Speed Range 865 rpm through 2200 rpm.Maximum Allowable Working Pressure 80 psig  (5.5 barg).Maximum Allowable Operating Temp 350°F  (176°C).Shaft Seal Single face mechanical or double bellows.Bearings Steel cage, Alloy steel rollers and races (no yellow metals).Lubrication Once through oil injection system - 5 points (by others).Drive Type Direct couple or belt driven, suitable for VFD.Shaft End 1.25` diameter at coupling
