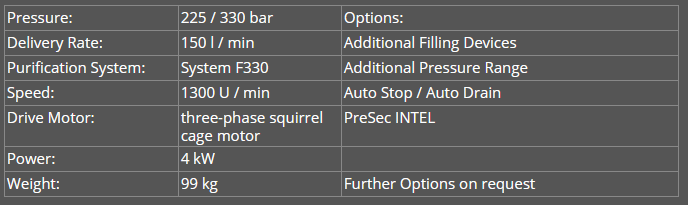

CompTrade - Model CTP-150E3 -Mobile Compressor

• compressor and motor mounted on frame with shock absorbers. Frame, manufactured in light weight construction, is designed for easy change of power sources.
• Micronic – suction filter
• splash lubrication
• interstage coolers
• aftercooler
• manual condensate drain for draining the separators
• end pressure safety valve 225 bar or 330 bar
• pressure gauge

FILTER SYSTEM F 75

• COMP TRADE long-term filter cartridge for 3-stage air conditioning
• air quality DIN 3188 / EN 12021 : 2014
• filling : MS-AC-MS supplying air quality according to DIN 3188 / EN 12021 : 2014
• recyclable air volume ca. 75 m³ bei 20° environmental temperature

fill connection with filling unit 225 bar or 330 bar

• DIN Anschluss G 5/8" DIN 477
• 1m Füllschlauch mit Handrad und Füllrohr

ADDITIONAL FILLING CLOSURE consisting of:

• filling unit with DIN connector G 5/8" für 200 or 300 bar, end pressure gauge and 1m filling hose with self-venting filling valve

SECOND PRINTING AREA consisting of:

• filling unit with DIN connector G 5/8" für 200 bar, end pressure gauge and 1m filling hose with self-venting filling valve and safety valve 225 bar

AUTO-STOP

• pressure switch with cut-off when the final pressure is reached

AUTOMATIC DRAINAGE SYSTEM

• drains all separators between the individual stages and also the final separator during compressor Operation
• magnetic valvel

PRESEC INTEL

• a monitoring system for filter cartridge saturation and maintenance Level without external power supply and sensors, activated by the compressor operation itself.
