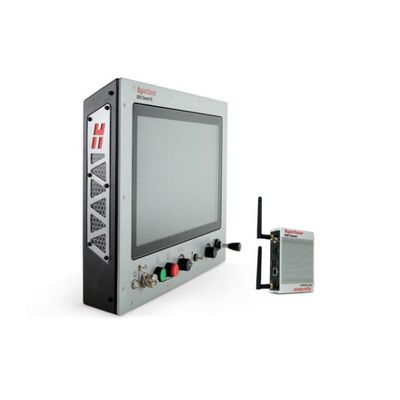

EDGE Connect - Computer Numeric Control (CNC) System

For easy set up, changes, and upgrades, EDGE Connect CNCs can be configured in the field with software specific to the cutting machine application. The easy-to-use system combines advanced cutting performance with an intuitive graphical interface, and supports plasma, oxyfuel, and waterjet applications.

• With Patented CutPro^® Wizard, even new operators can be cutting production parts in less than five minutes
• On-screen Software Operator’s Console (Soft OpCon) allows easy setup and operation of cutting station and manual motion
• Integrated communications with plasma and torch height control systems deliver automated and expert control using installed factory or custom cut charts
• Custom cut charts can be created and controlled in the part program or made available to the CutPro Wizard
• EDGE Connect runs on the Windows^® 10 Enterprise operating system

ProNest^® CNC nesting

• Easy-to-use touch screen interface, machine operators can create nested part programs and obtain optimal cut quality without extensive training.
• Directly imports DXF, DWG, CAM, DGN, and CNC simple shapes.
• Embedded SureCut™ technology maximizes performance through embedded expertise. Patented True Hole^® technology with process verification ensures all operator variables are properly set.
• Pattern Array Nesting for a single part with process optimization included.
• True Shape Nesting module for multiple parts (included when using EDGE Connect and ProNest on the same internal network; available as a paid option for users without Pronest or an internal network connection).
