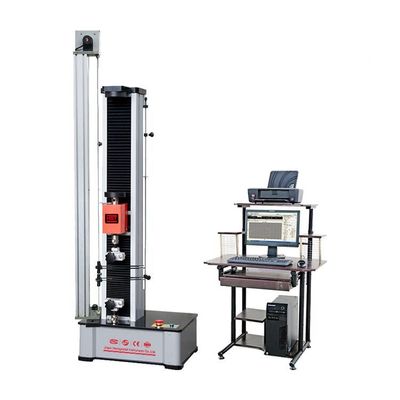

HST Group - Model WDW-1,2,5 kN -Computerized Tensile Testing Machine
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Most popular related searches
universal testing machine
tensile testing system
tensile test
tensile testing
textile testing
industrial testing
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
- Model : WDW-01,02,03,05,1,2,3,5
- Structure : Single column double spaces
- Max. Load(kN) : 0.1, 0.2, 0.3, 0.5, 1, 2, 3 ,5
- Material : All aluminum alloy surface spray painting shell
- Load accuracy : Class 0.5
- Load range : 0.2%~100%F·S
- Load resolution : 1/ 500000
- Resolution of displacement : 0.01mm
- Test speed(mm/min) : 0.05-500 stepless arbitrary setting
- Speed accuracy : within ±1% set speed
- E-Tensile space(mm) : 600 (can be customized)
- E-Compression space(mm) : 600 (can be customized)
- D-Test width(mm) : 100
- F-Beam travel distance(mm) : 772
- Power supply : AC220V±10%,50Hz/60Hz(can be customized)
