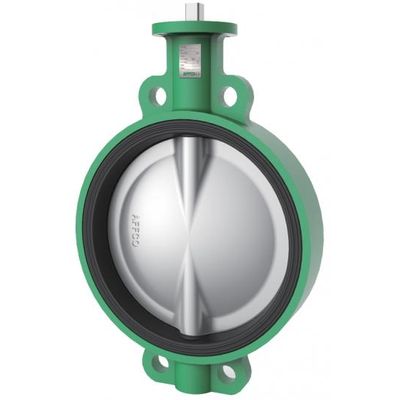

Affco - Model Wafer Type 575 -Concentric Wafer Type Butterfly Valve

Sizes:

• DN 40 – DN 1200 (1½” ~ 48″)
• DN 1400 – DN 2000 (56″ ~ 80″) (other sizes on request)

Flange connection:

• EN1092 (PN 6-10-16, PN25 up to DN 400)
• ASME B 16.5 (class 150 – 300)
• JIS B 2239 & 2220 (5K, 10K, 16K, 30K)
• Temperature range -23°C to +200°C
• Short face to face acc. EN 558-1 row 20
• Top flange acc. EN ISO 5211
• Vacuum to 1*10^-3 0.2 Torr absolute
